Steel Prop

Short Description:

The steel prop is a support device widely used for supporting the vertical direction structure, that adapt to the vertical support of the slab formwork of any shape. It is simple and flexible,and the installation is convenient, being economical and practical. The steel prop takes small space and is easy to store and transport.


Product Detail

Product Details

The steel prop is a support device widely used for supporting the vertical direction structure,that adapt to the vertical support of the slab formwork of any shape.It is simple and flexible,and the installation is convenient,being economical and practical.The steel prop takes small space and is easy to store and transport.
Steel prop is adjustable within a specific range and can be adjusted as needed.

There are mainly three types of steel props :
1.Outer tubeφ60,Inner tubeφ48(60/48)
2.Outer tubeφ75,Inner tubeφ60(75/60)

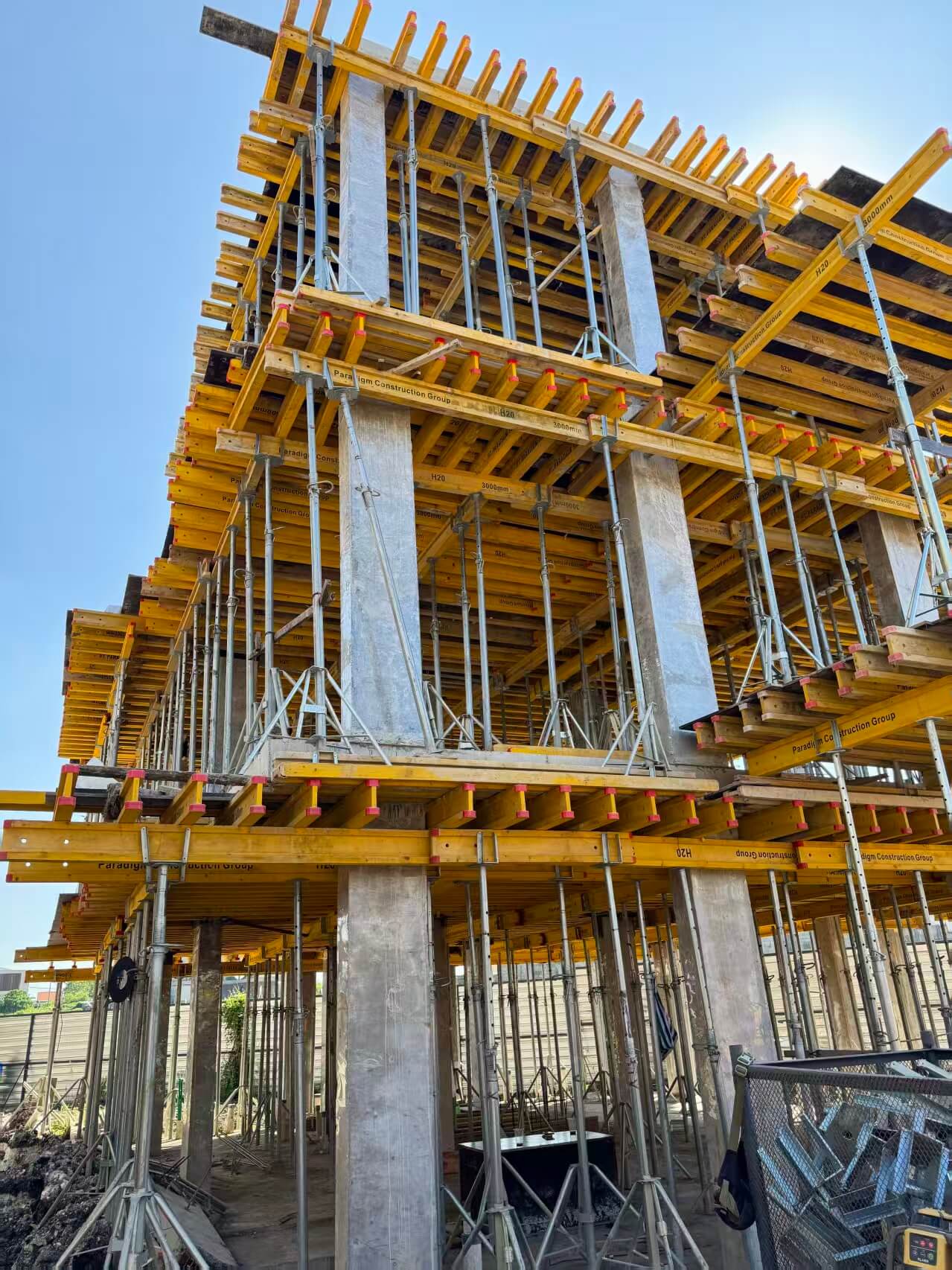

The original steel prop was the first adjustable prop in the world, revolutionizing construction. It’s a simple and innovative design, manufactured from high yield steel to steel prop’s specifications, permits versatility across a multitude of uses, including falsework support, as raking shores, and as temporary support. Steel props are fast to erect in three simple steps and can be handled by a single person, ensuring reliable and economical formwork and scaffolding applications.

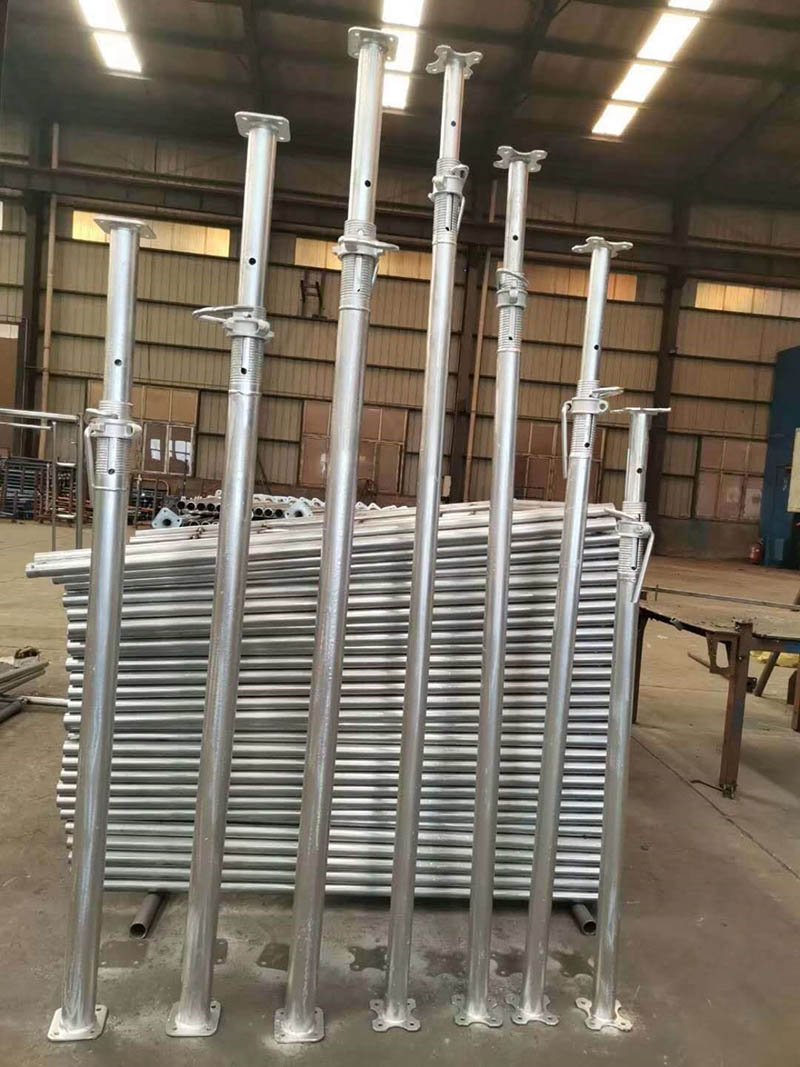

The steel prop components:

1. Head and base plate for securing to timber beams or facilitating the use of accessories.

2. Inner tube diameter enables standard scaffold tubes and couplers to be used for bracing purposes.

3. The outer tube accommodates the thread section and slot for fine height adjustment. Reduction couplers enable standard scaffold tubes to be connected to the steel prop outer-tube for bracing purposes.

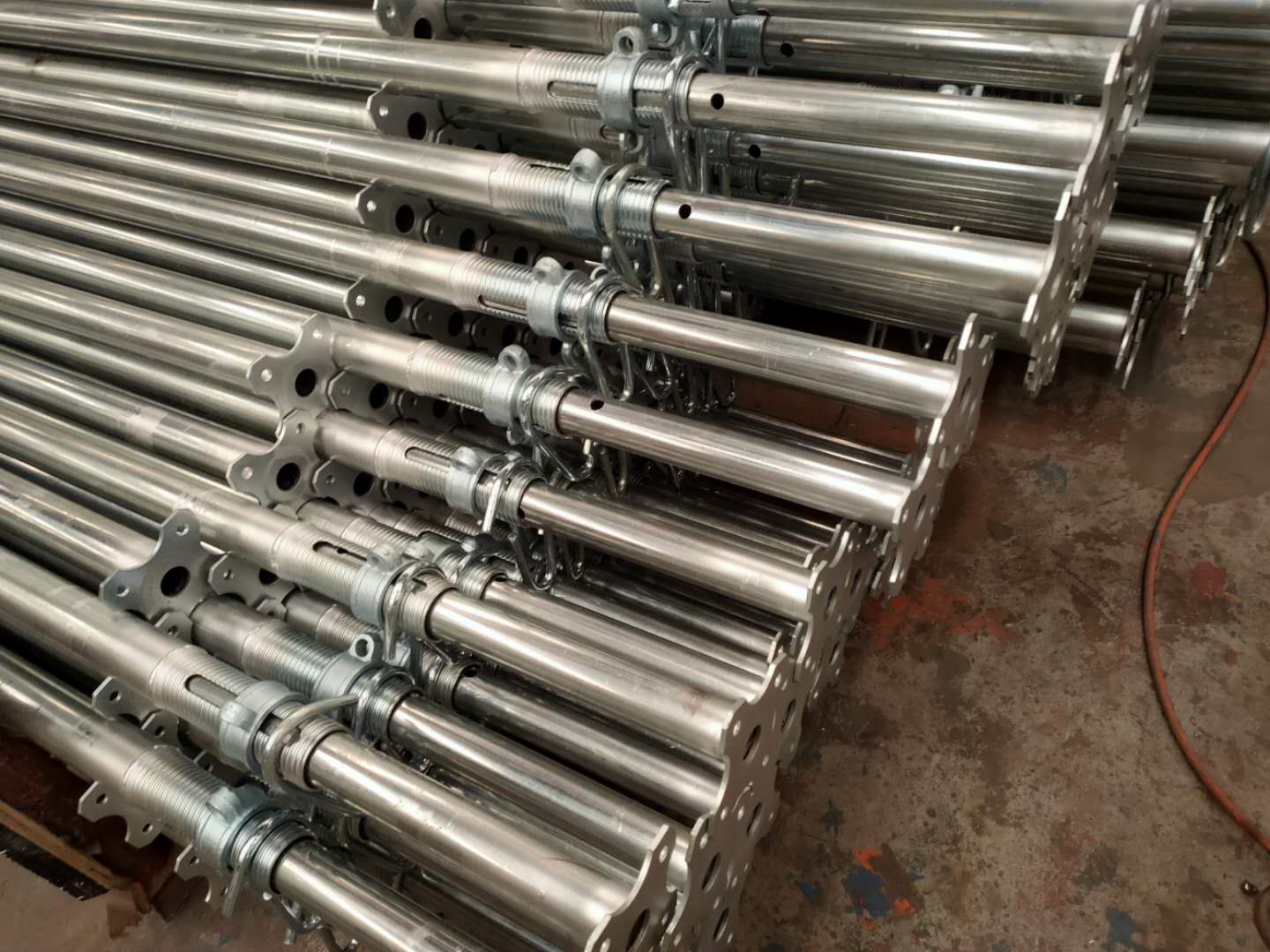

4. The thread on the outer-tube provides fine adjustment within the props given range. The rolled thread retains the wall thickness of the tube and thereby maintains maximum strength.

5. The prop nut is the self-cleaning steel prop nut that has a hole at one end for easy turning when the prop handle is close to the walls. An extra nut can be added to convert the prop to a push-pull strut.

Advantages

1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, electric-galvanization, powder coating and painting.
3. Special design prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the plate and base plate, the prop heads (fork heads) are easily to insert in the inner tube and outer tube.

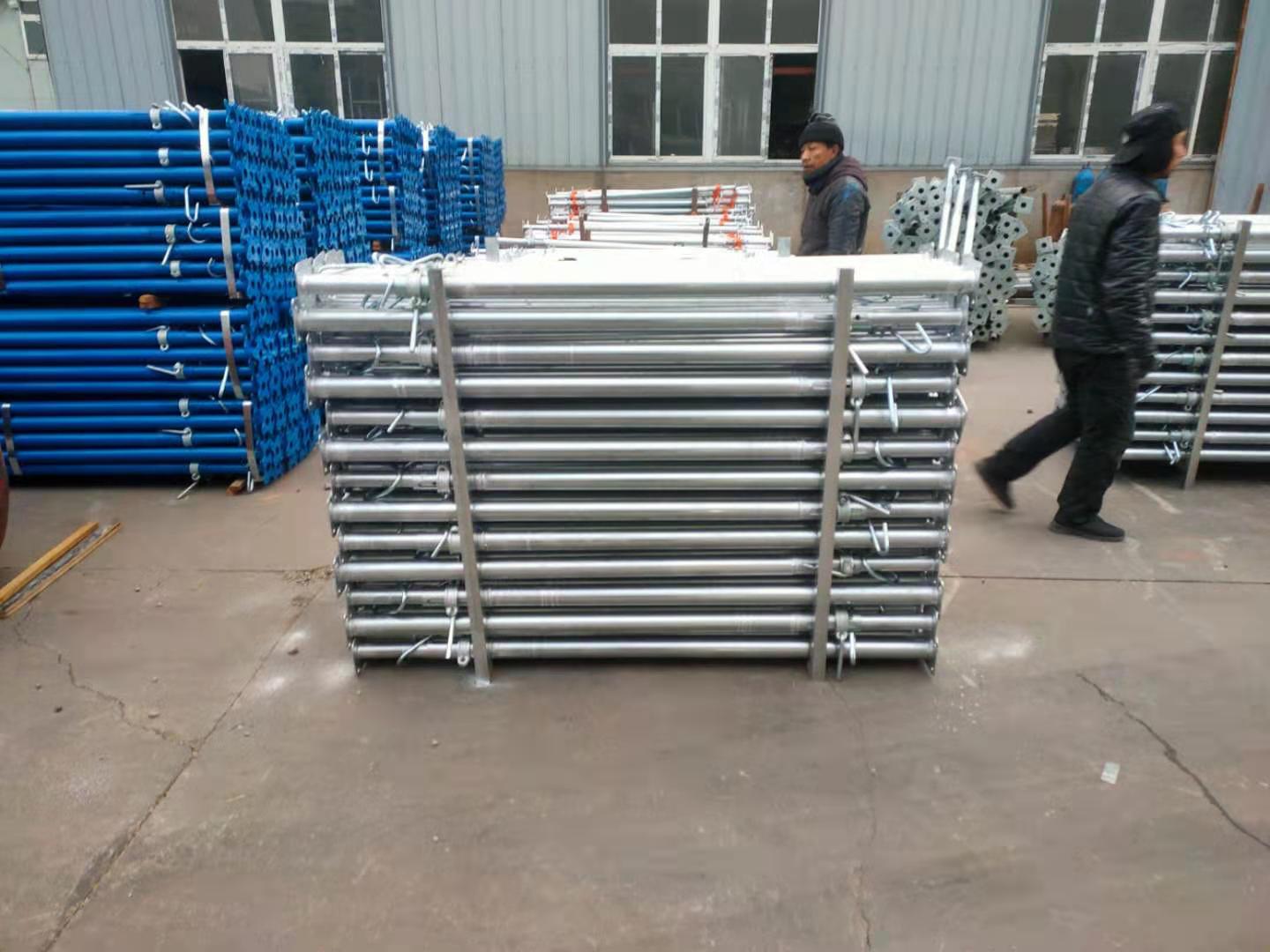

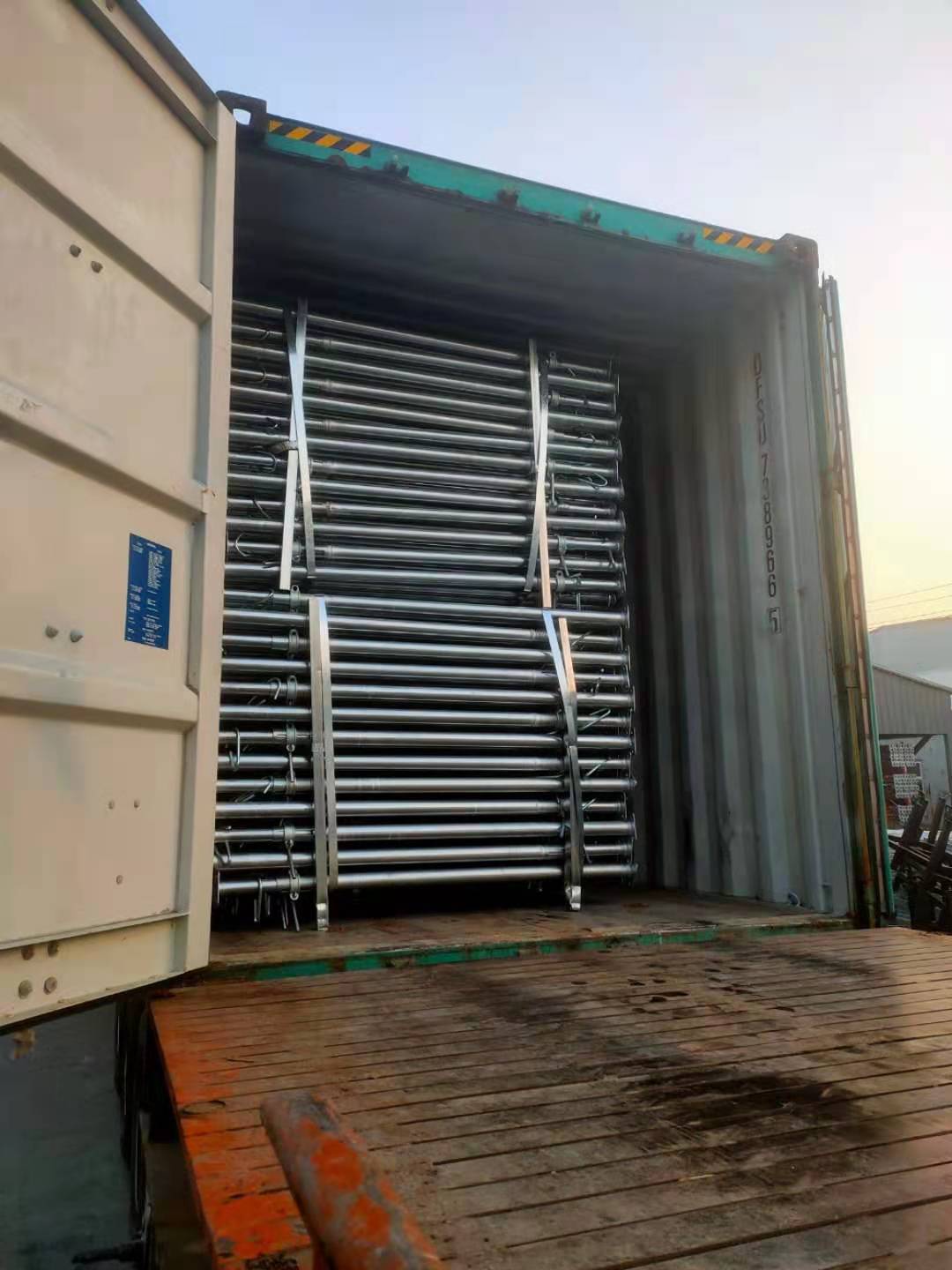

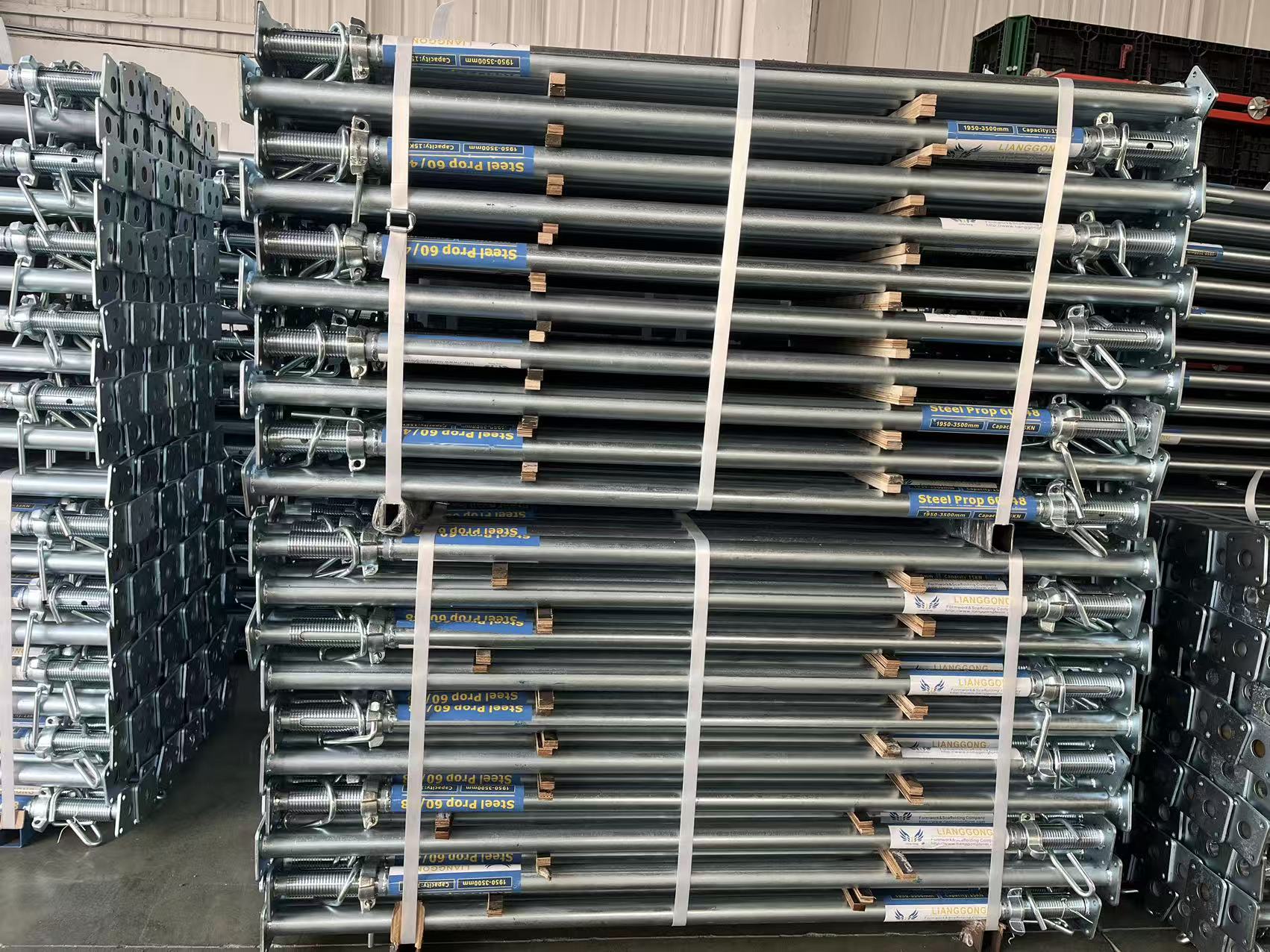

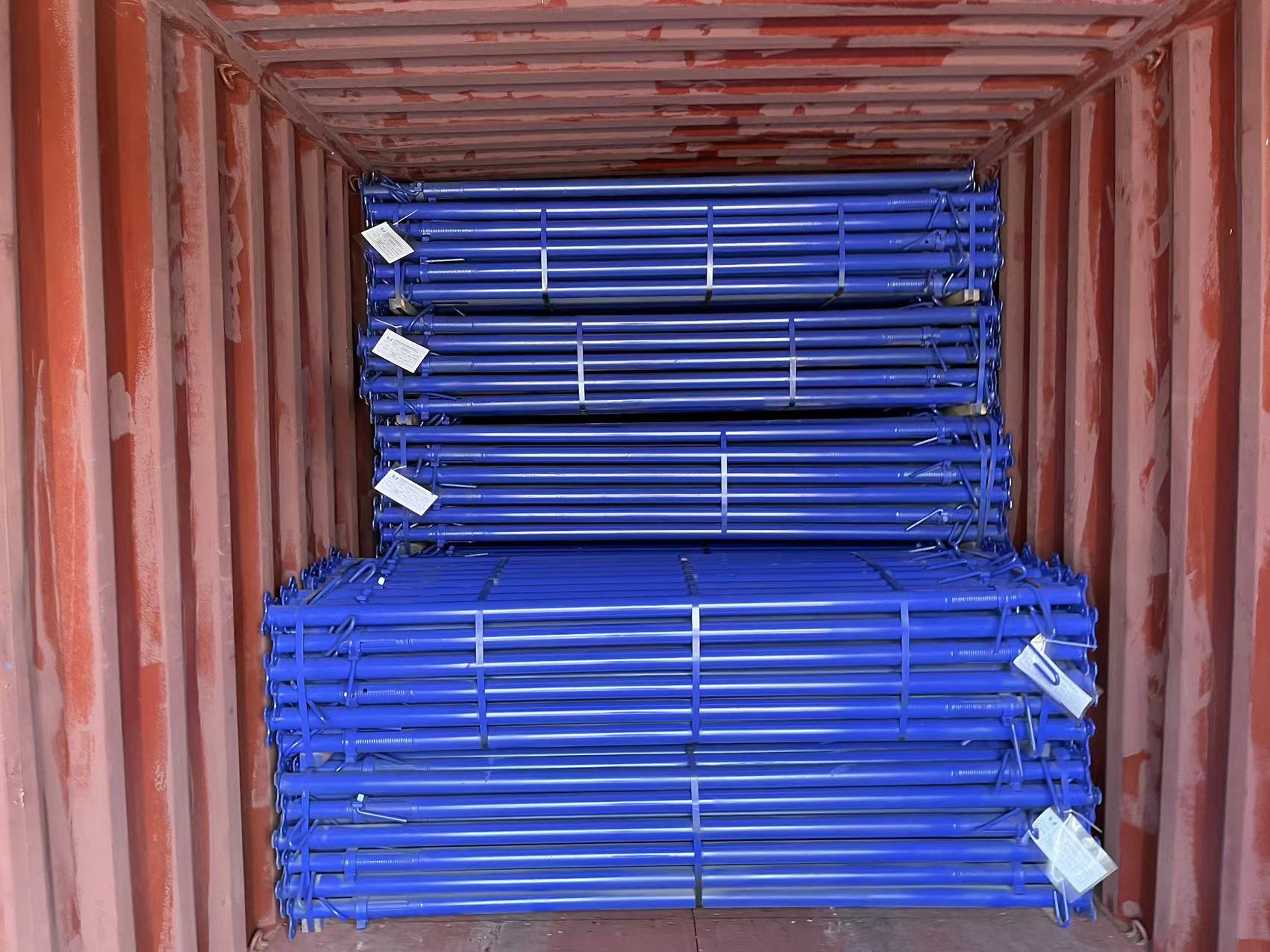

6. The strong pallets ensure the transportation easily and safely.
