Film Faced Plywood

Short Description:

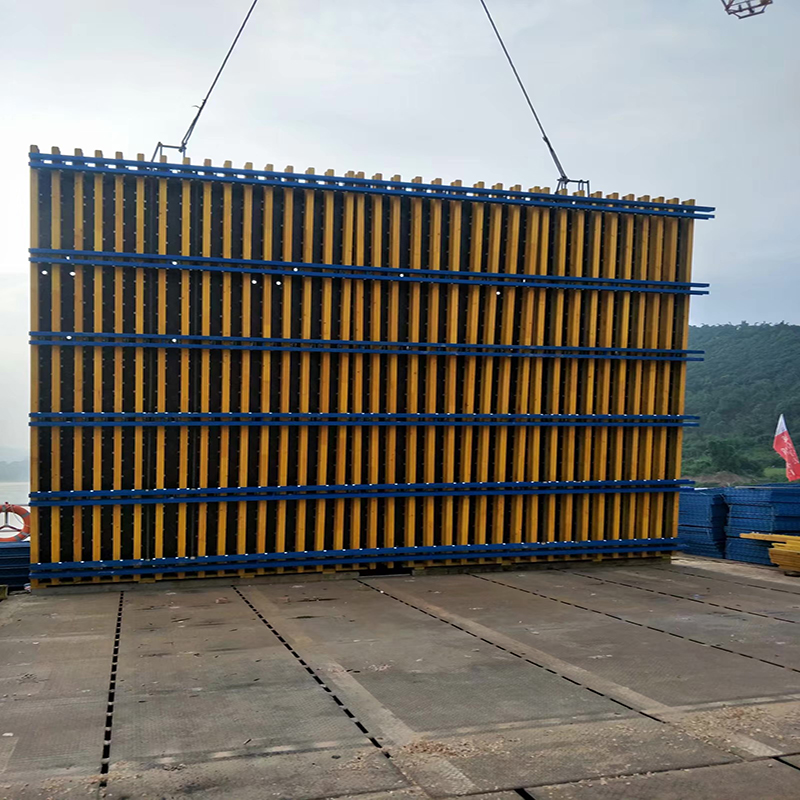

Plywood mainly covers birch plywood, hardwood plywood and poplar plywood, and it can fit into panels for many formwork systems, for example, steel frame formwork system, single side formwork system, timber beam formwork system, steel props formwork system, scaffolding formwork system, etc… It is economic and practical for construction concrete pouring.

LG plywood is the plywood product that is laminated by an impregnated film of plain phenolic resin manufactured to many kinds of size and thickness to meet the strict requirements of international standards.

Send email to us

Product Detail

Specification

	Type-1.5		WBP
Thickness	Bending Strength (N/mm2)	Modulus Elasticity In Bending (N/mm2)	Bending Strength (N/mm2)	Modulus Elasticity In Bending (N/mm2)
12	44	5900	45	6800
15	43	5700	44	6400
18	46	6500	48	5800
21	40	5100	42	5500

Thickness	No of Plies	Size	Qlue Type	Species
9mm	5	1220x2440mm(4′x8′) &1250x2500mm	WBP&Melamine -Urea Glue(Type 1.5)	Tropical Hardwood
12mm	5
12mm	7
15mm	9
18mm	9
18mm	13
21mm	11
24mm	13
27mm	13/15
30mm	15/17

Film	Dynea Brown film, Domestic Brown film, anti-slip Brown film, Black film
Core	Poplar, Hardwood, Eucalptus, Birch, Combi
Size	1220x2440mm 1250x2500mm 1220x2500mm 915x1830mm 1500x3000mm 1525x3050mm
Thickness	9-35mm
Usual	9mm, 12mm, 15mm, 18mm, 21mm, 24mm, 25mm, 27mm, 30mm, 35mm
Thickness Tolerance	±0.5mm

Performance

If put in boiling water for 48 hours, it is still glue-sticking and non-deformed.
2. Physical mood is better than iron moulds and can satisfy the requirements of constructing mould.
3. Solves the problems of leaking and rough surface during constructing process.
4. Particularly suitable for watering concrete project because it can make the concrete surface smooth and flat.
5. Realizing a higher economic profits.

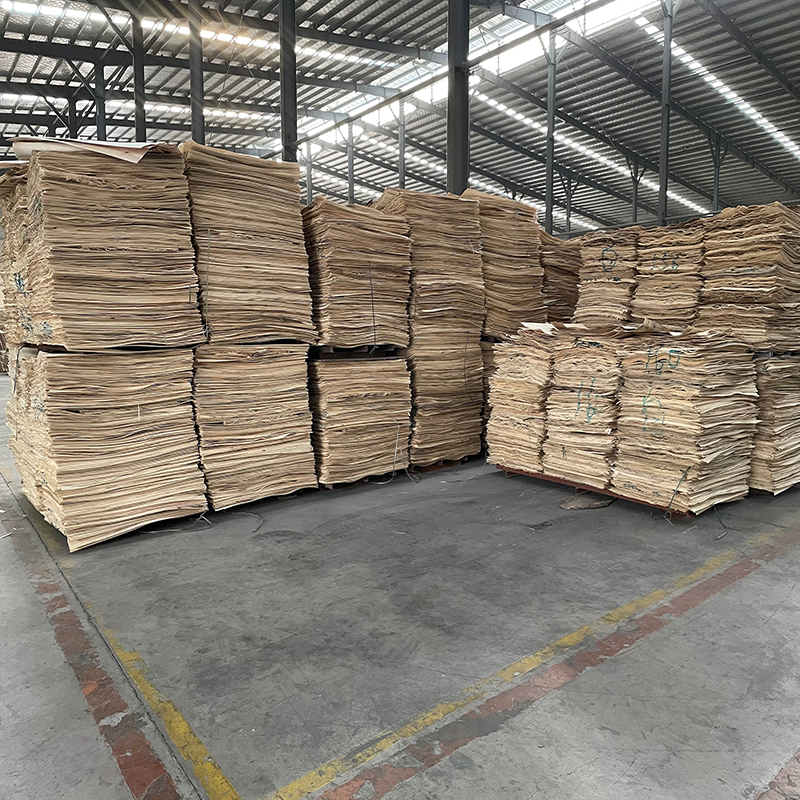

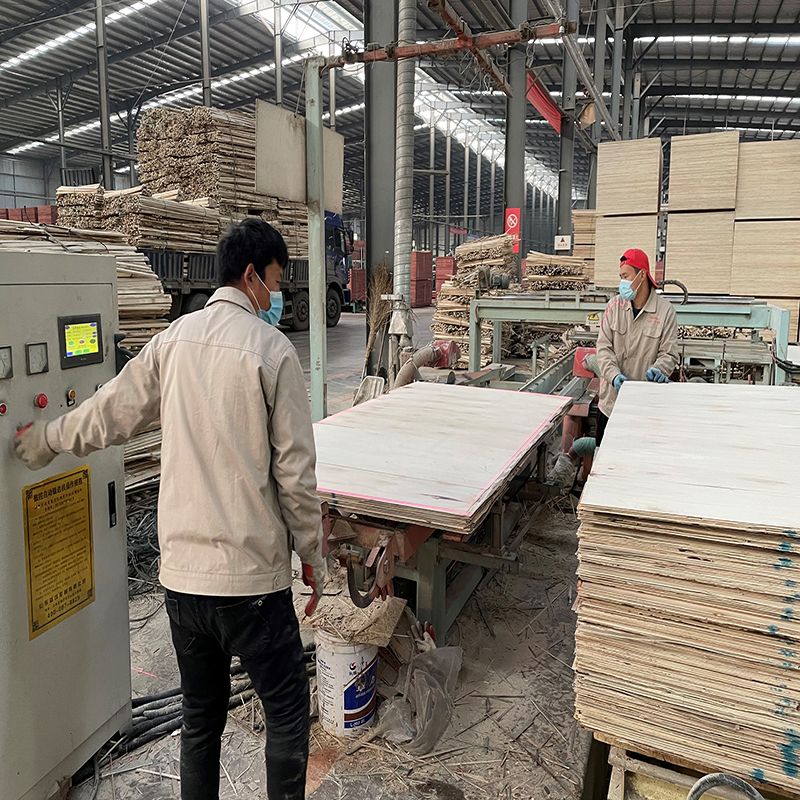

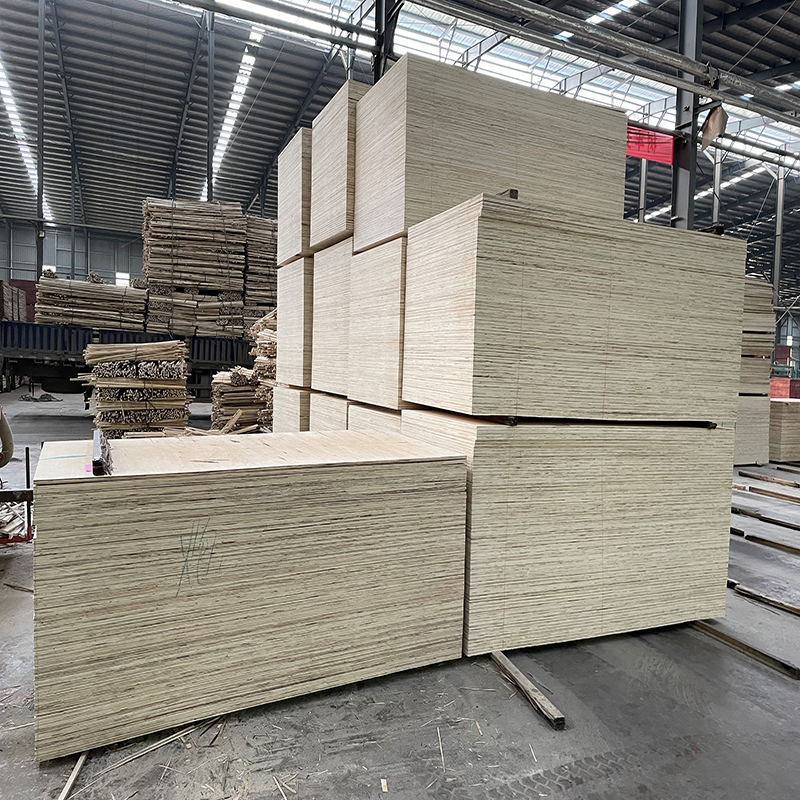

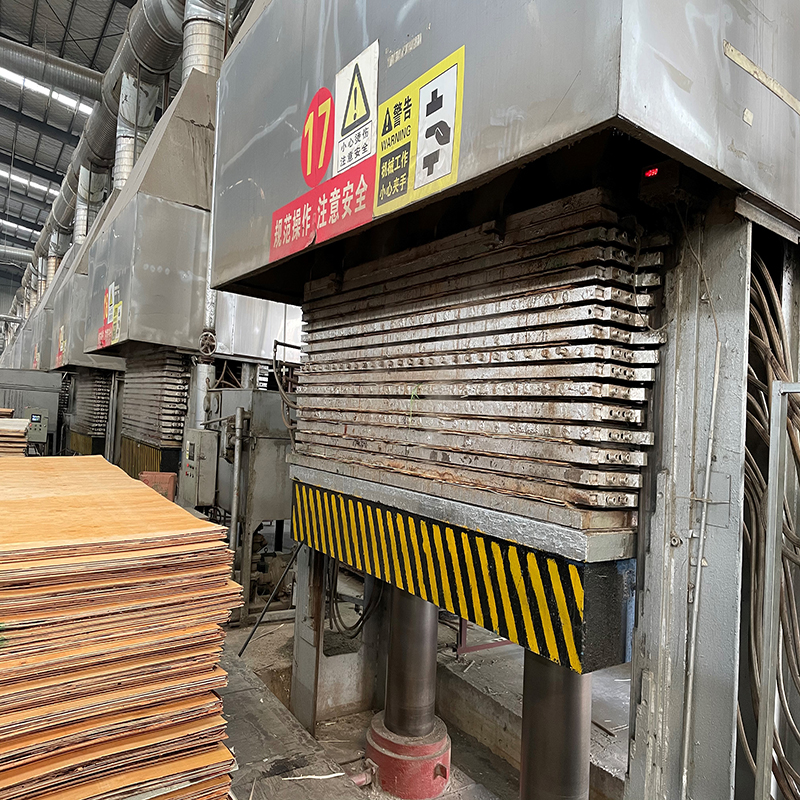

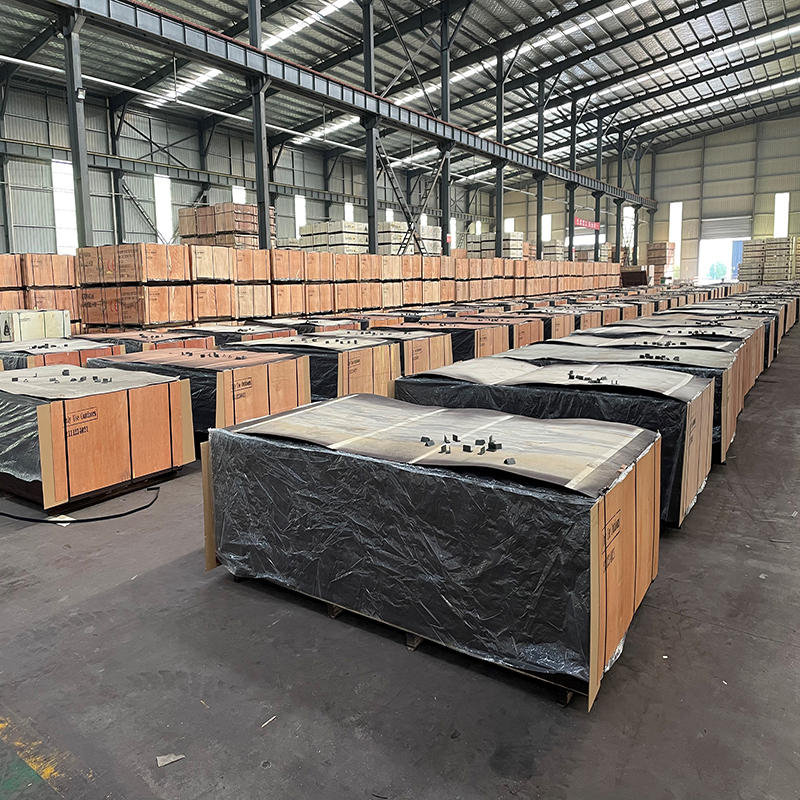

Product Photos
