Aluminum Support

Short Description:

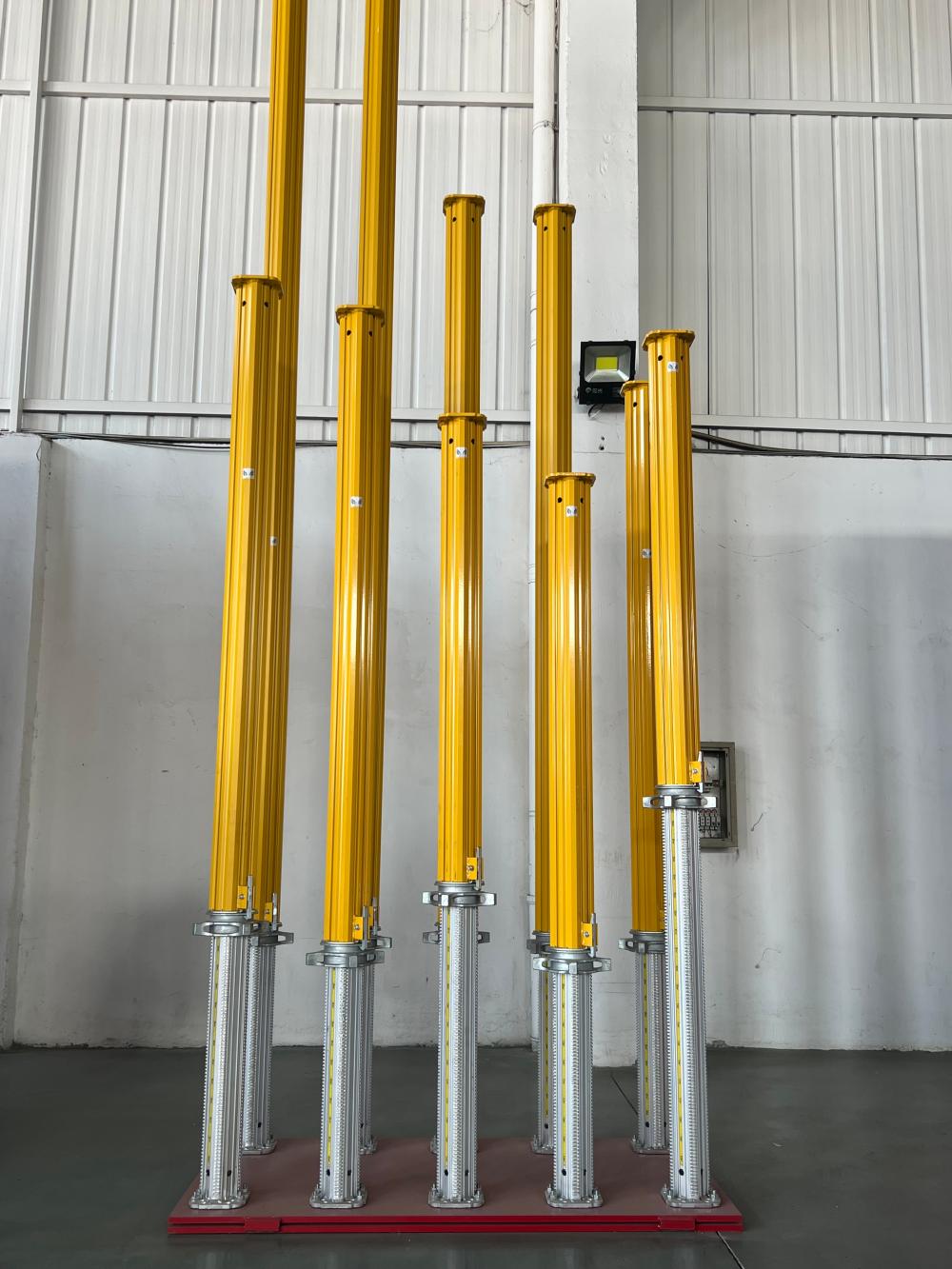

Aluminum Multi-Prop System

The Liangong Aluminum Multi-Prop (AMP) is engineered specifically for horizontal formwork applications. It delivers safe and reliable heavy-load support through a lightweight yet high-strength structure. Its innovative wide-span design streamlines construction processes and minimizes labor demand.

Featuring quick assembly and disassembly, efficient transport and storage, and optimized workspace planning, this system substantially lowers project costs while maintaining high construction efficiency. The AMP provides a high-performance, cost-effective solution tailored to modern construction needs.

Send email to us

Product Detail

Detailed Introduction

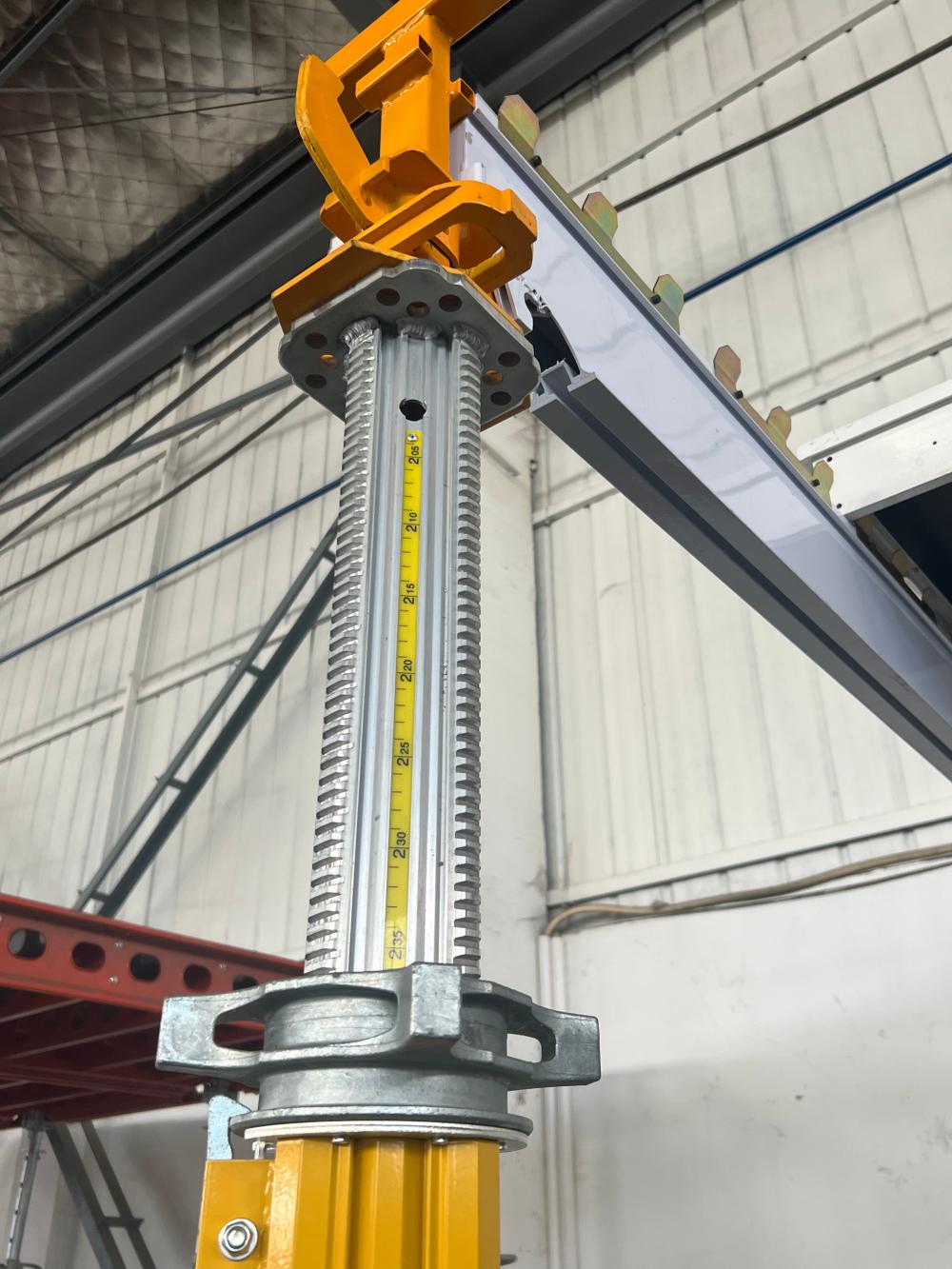

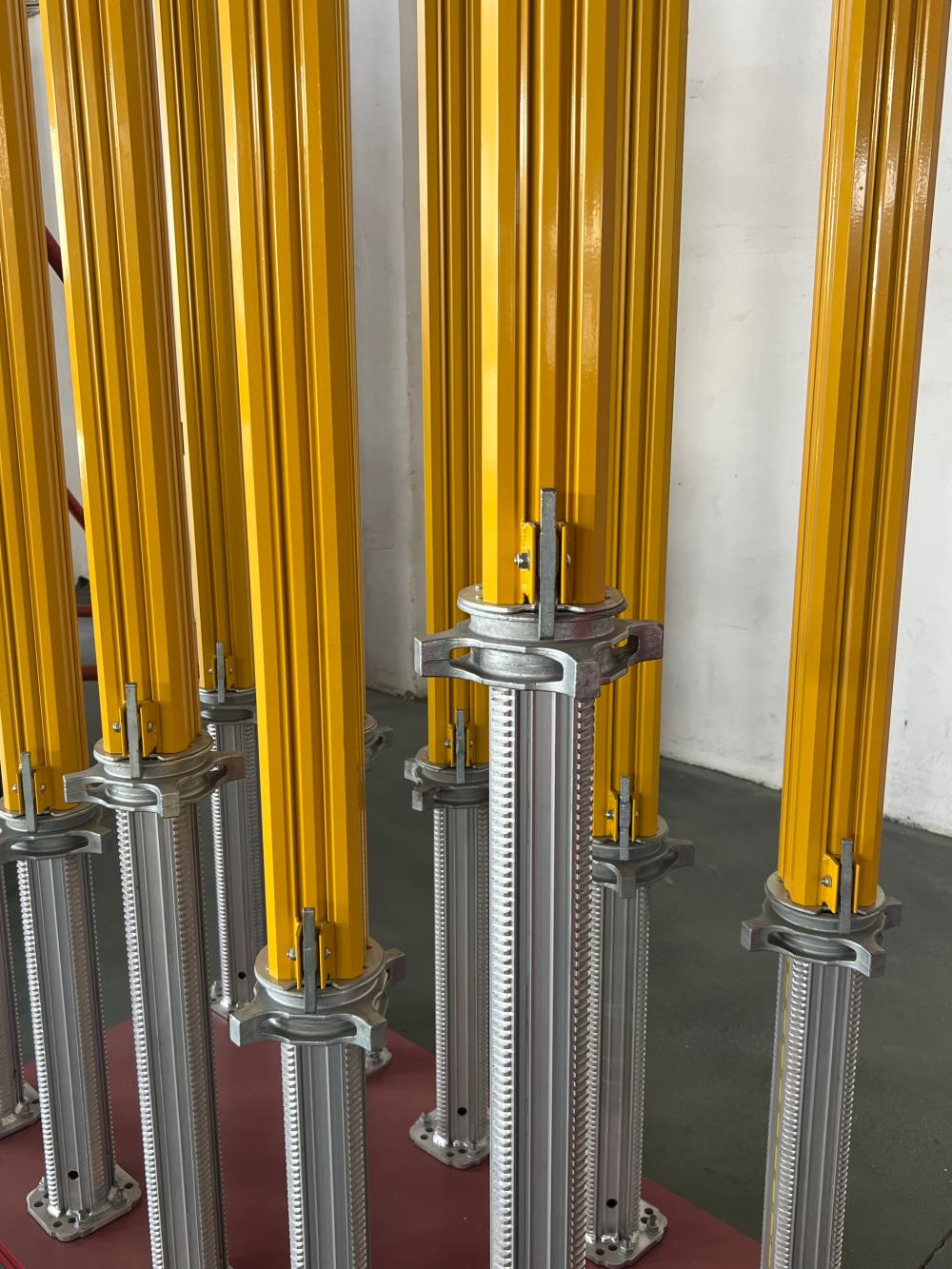

1. Four-Start Threaded Cast Steel Nut
Featuring a four-start thread design, this cast steel nut allows for rapid and effortless height adjustment of the inner tube. Each full rotation raises the tube by 38 mm, delivering adjustment speed twice as fast as a single-thread system and triple the efficiency of conventional steel props.

2. Automatic Concrete Cleaning Function
The integrated design of the inner tube and nut enables the prop system to self-clean during rotation. Even under heavily adhered concrete or debris, the nut maintains smooth and unrestricted movement.

3. Height Measurement Scale
Clear height markings on the inner tube allow for quick pre-adjustment, significantly reducing time and labor costs associated with manual measuring and positioning.

4. Safety Stop Mechanism
A built-in safety stop prevents the inner tube from accidentally dislodging during loosening, ensuring operational safety and stability.

5. Powder-Coated Outer Tube
The outer tube is protected with a durable powder coating that effectively resists concrete adhesion, enhances corrosion resistance, and prolongs the system's service life.
