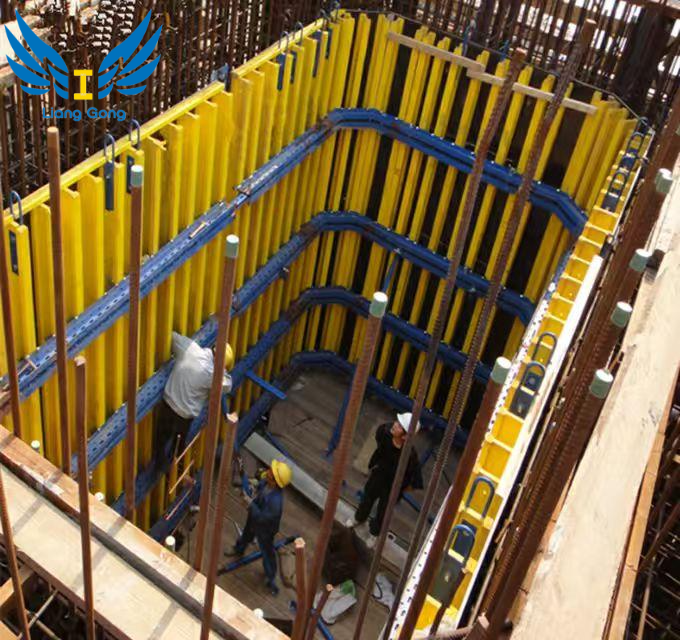

Are you seeking a reliable, efficient formwork support system for elevator shafts, equipment shafts, or stairwells in high-rise buildings? Our Shaft Beam Platform is engineered to streamline shaft concrete casting with unmatched simplicity, speed, and cost-effectiveness—becoming the trusted choice for contractors worldwide. Designed to bear concrete lateral pressure via wall-through tie rods, this system eliminates construction hassles, ensures structural stability, and accelerates project timelines.
What Key Benefits Make Our Shaft Beam Platform Stand Out?
● Tailored for Shaft-Specific Needs: Specialized for high-rise building shafts (elevator, equipment, stairwell), perfectly adapting to the confined and vertical construction environment.
● Superior Load-Bearing Capacity: Concrete lateral pressure is firmly borne by wall-through tie rods, paired with a robust structural design that prevents deformation—guaranteeing safe and stable casting operations.
● Wide Adjustable Range: Shaft beams come in 5 specifications, with lengths ranging from 1.45m to 5.9m, and adjustable timber beam length (L) and width (W). Easily fits diverse shaft sizes without extensive customization.
● Simple & Efficient Operation: Quick assembly and disassembly reduce labor intensity. The platform and formwork are hoisted separately (formwork first, then platform) with a tower crane, streamlining the construction workflow.
● Cost-Effective & Versatile: Works seamlessly with climbing formwork systems (e.g., Cantilever Formwork CB-240), maximizing compatibility with existing project setups. Durable components ensure repeated use, lowering long-term project costs.
What Are the Core Components Structure of Our Shaft Beam Platform?

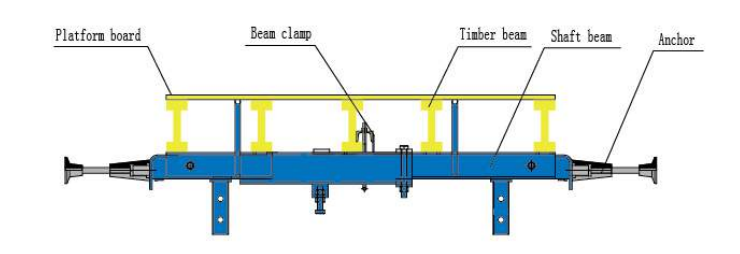

Shaft Platform, also known as shaft working platform, features a modular, easy-to-assemble design, consisting of four core components that work in harmony to deliver reliable performance, the structure drawing is as follows:
1. Shaft Beam
The backbone of shaft platform system, available in 5 precision-engineered specifications to match different shaft lengths:
|
Type |
Specification | Weight |
|
Shaft Beam 1 |
1.45-1.7m | 74.54 kg |
|
Shaft Beam 2 |
1.7-2.1m | 88.68 kg |
|
Shaft Beam 3 |
2.1-2.7m | 120.43 kg |
|
Shaft Beam 4 |
2.7-3.8m | 179.19 kg |
|
Shaft Beam 5 |
3.8-5.9m | 301.87 kg |
2. Platform Board
Platform Board: Provides a stable working surface for workers during formwork installation, concrete pouring, and maintenance.
3.Timber Beam
Timber Beam: Supports the platform board. The beam’s sturdy construction ensures it can bear construction loads and material weight.
4. Anchor System
Anchor System: Includes climbing cone, tensile bolt, anchor plate and high-strength tie rod. When the platform is in place, the shaft beam’s claws are tightly fixed to the tensile bolts, locking the entire system to the building structure for maximum stability. It also can be replaced by box for latch.

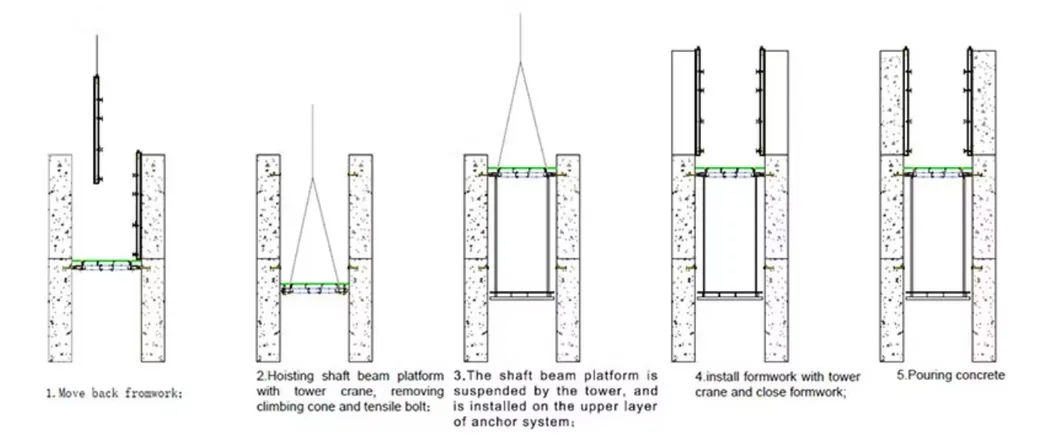

What Is the Simple Construction Workflow for Our Shaft Beam Platform？
● Retract Formwork: Move the existing formwork back to prepare for platform installation.
● Hoist Shaft Beam Platform: Lift the platform using a tower crane and removing climbing cones and tensile bolts.
● Secure the Platform: Ensure the shaft beam’s claws are firmly fixed to the tensile bolts for stable positioning.
● Install & Close Formwork: Hoist the formwork with a tower crane, align it with the platform, and close it in place.
● Pour Concrete: Proceed with shaft concrete casting, leveraging the platform’s stability for flawless results.
What Are Ideal Applications of Our Shaft Beam Platform?
Our shaft platform is the perfect choice for:

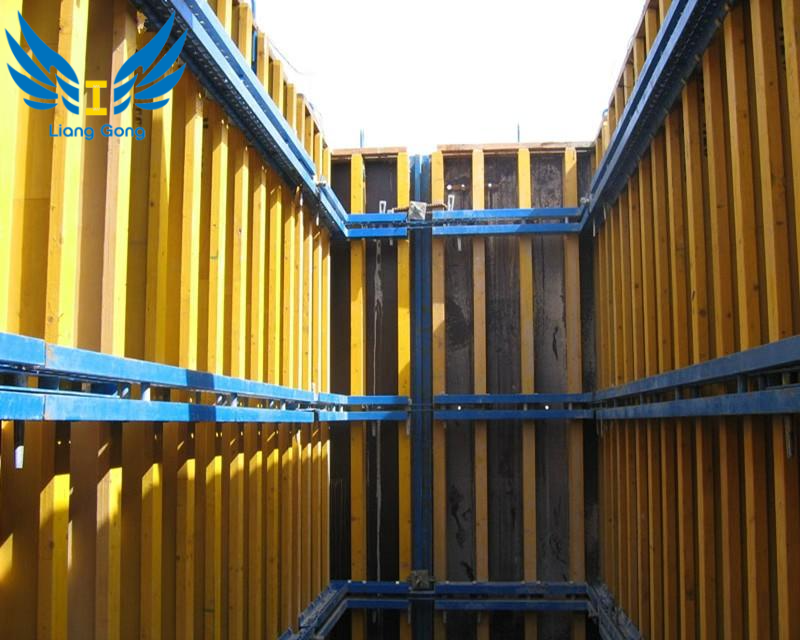

● Elevator shafts in high-rise residential and commercial buildings
● Equipment shafts (ventilation, electrical, plumbing) in industrial and civil structures
● Stairwell shafts in high-rise constructions
● Other vertical shaft structures requiring precise, stable concrete casting
Why Choose Our Shaft Beam Platform?
We combine engineering precision with user-centric design to solve the unique challenges of shaft construction. Our system offers unmatched adaptability, reliability, and efficiency—reducing labor time, minimizing errors, and ensuring compliance with global construction standards. Whether you’re working on a 20-story apartment building or a 100-story skyscraper, our shaft working platform adapts to your needs and delivers consistent, professional results.
Ready to simplify your high-rise shaft construction? Click to explore detailed technical drawings, case studies, and customized quotes. Let’s build safer, faster, and smarter—together.
