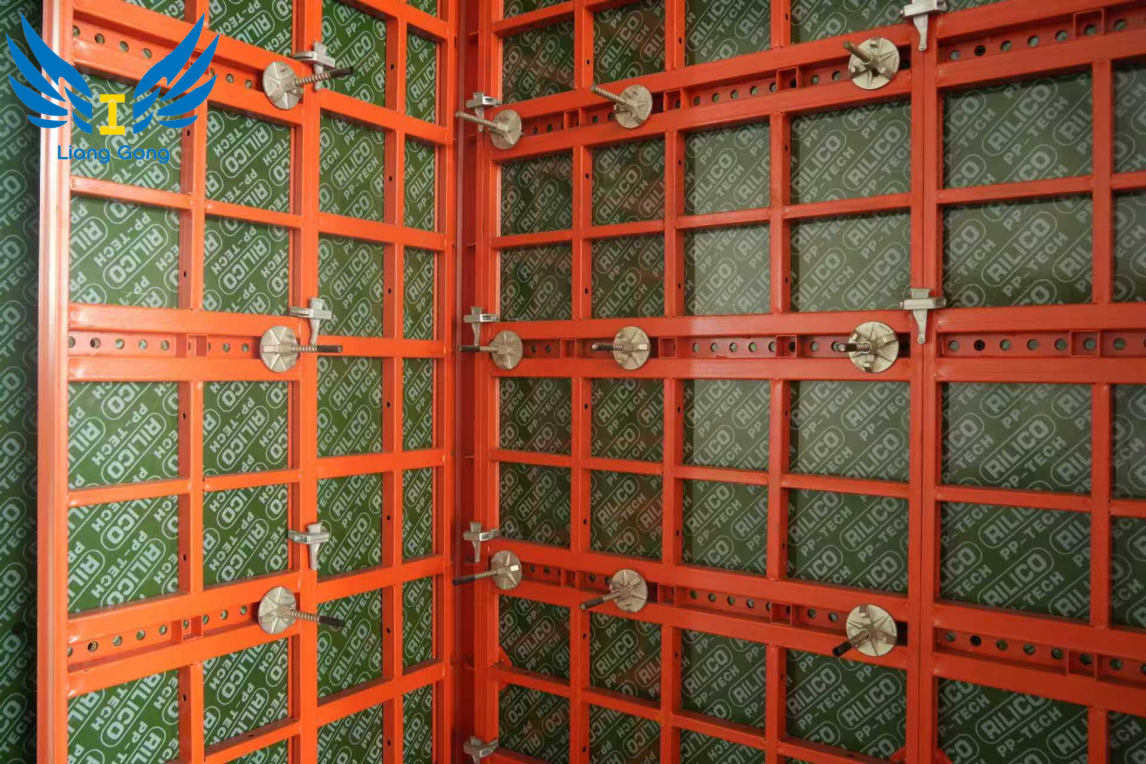

Lianggong 65 Steel Frame Formwork stands out as a pioneer in construction—combining lightweight design, high load-bearing capacity, and easy assembly to elevate projects from residential buildings to bridges and tunnels. Engineered with premium Q235B steel frame and 12mm film-faced plywood, this systematized solution delivers consistent quality, rapid turnaround, and long-term cost savings for contractors worldwide.
Why Lianggong 65 Steel Frame Formwork Outshines Competitors?
● High Load Capacity: 65 steel frame formwork system withstands concrete pressure of 60–80kN/m2, which ensures structural stability for large-scale pours.
● Rapid Assembly & Disassembly: Modular design paired with specialized clamps (alignment coupler, column coupler, standard coupler) simplifies connections—reducing shuttering time and labor costs. Even complex configurations are easy to assemble, accelerating project timelines.
● Exceptional Reusability: High-quality plywood (with PP plastic film) and durable Q235B steel frames enable 30–100 reuse cycles. This minimizes material waste and lowers long-term project costs compared to single-use or low-quality formwork.
● Flexible Customization: Standard panels (width: 500mm–1200mm, height: 600mm–3000mm) feature 50mm incremental adjustable holes for tailored fits. Four 3m×1.2m panels can create columns from 150×150mm to 1050×1050mm, adapting to diverse project requirements.
● Smooth Concrete Finishes: The surface of plywood laminated with PP plastic film produces flawless, uniform concrete walls and columns—no post-construction refinishing needed. This enhances structural aesthetics and reduces additional labor for plastering or sanding.
● Easy Transport & Storage: Panels are designed for horizontal maneuverability with wheels and vertical lifting with standard equipment. Multiple surface treatments (dip coating, galvanization) ensure corrosion resistance, simplifying storage and extending service life.
What Are Specifications of Lianggong 65 Steel Frame Formwork?
Here are key specifications of our 65 steel frame formwork:
● Steel Frame Material: Q235B (compliant with GB/T700-2007) for robust structural support.
● Plywood: 12mm thick high-quality hardwood with PP plastic protective film (waterproof, easy to clean).
● Permitted Concrete Pressure: 60–80 kN/m2, suitable for high-speed pours.
● Adjustment Capacity: Alignment couplers offer 0–150mm flexibility; column dimensions adjust in 50mm increments.
● Maximum Single Cast Height: 6m for single-sided formwork, ideal for tall walls and retaining structures.
What Are Panel Ranges of Lianggong 65 Steel Frame Formwork?
|
Panel Dimension (Height × Width, mm) |
Weight (kg) |
|
3000×1200 |
130.55 |
|
3000×1000 |
114.51 |
|
3000×750 |
88.16 |
|
3000×500 |
61.84 |
|
2400×1200 |
105.77 |
|
2400×1000 |
92.00 |
|
2400×750 |
71.12 |
|
2400×500 |
49.91 |
|
1200×1200 |
55.09 |
|
1200×1000 |
47.88 |
|
1200×750 |
37.19 |
|
1200×500 |
26.07 |
|
600×1200 |
29.74 |
|
600×1000 |
25.82 |
|
600×750 |
20.03 |
|
600×500 |
14.11 |
Note: The maximum working width of a single panel should be 150mm less than the panel’s width. The panel can be adjusted to fit the actual requirements on the job site.
What Are Core Components and Accessories of Our 65 Steel Frame Formwork?
Every part of our 65 steel frame formwork system is engineered for compatibility and reliability:
Formwork Panels: Steel frame riveted with 12mm coated plywood.
Connection Clamps:
● Column coupler: Column coupler is used for vertical connect two formwork panels.
● Standard clamp: Standard clamp is used for connecting two formwork panels to expand formwork area and height.

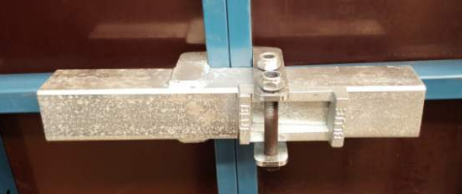

● Alignment coupler: Alignment coupler is used for connecting two formwork panels and it also has aligned function.
Corner Components:
● Internal corner: Internal corner lets formwork dismentle more easy with enough strength.
● Articulated corner: Articulated corner lets any different angle forming is possible.
Adjustment Tools: Adjustable clamp (0–200mm range) and infill wood connector to seal narrow gaps.
Adjustable clamp infill wood connector

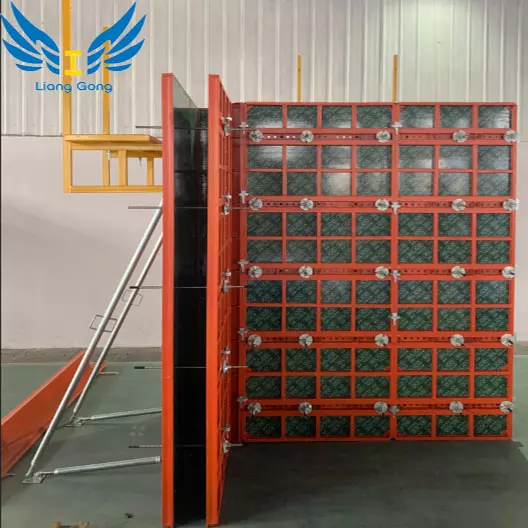

Support System: Push-pull props, D20 tie rods, big plate nuts, and waler clamps for integral lifting alignment.
Auxiliaries: Work platforms, R20 plastic plugs (for sealing unused holes), and DU16 steel channel beams.
What Are Ideal Applications of Our 65 Steel Frame Formwork?
Lianggong 65 steel frame formwork adapts to diverse construction scenarios, including:
● Residential Buildings
Steel frame formwork is ideal for residential building construction, offering precise wall alignment and a smooth concrete finish. Its modular design ensures fast setup and dismantling, making it cost-effective and efficient for housing developments and multi-unit residential projects.
● Commercial Complexes
In commercial complexes, steel frame formwork supports large-scale wall casting with high structural integrity. Its strength and durability make it suitable for malls, office buildings, and mixed-use facilities where consistent quality and construction speed are critical.
● High-Rise Structures
Steel frame formwork provides the load-bearing capacity needed for high-rise construction. Its robust panels ensure vertical accuracy and safety during repeated pours, making it a preferred solution for skyscrapers and tall residential or commercial towers.
● Bridges and Tunnels
65 steel frame formwork adapts well to bridge piers and tunnel walls. Its strong framework withstands heavy loads and supports precise concrete shaping, essential for long-span infrastructure and underground transit systems.
● Underground Parking
In underground parking facilities, steel frame formwork ensures fast and safe wall forming in confined spaces. Its reusable components reduce construction waste and improve overall productivity in subterranean structural projects.
● Infrastructure Developments
Steel frame formwork is widely used in infrastructure developments such as subways, water treatment plants, and retaining walls. Its high efficiency and adaptability to different project scales make it a reliable steel formwork system for public and industrial projects.
Why Choose Lianggong 65 Steel Frame Formwork?
As a leading formwork manufacturer, Lianggong delivers more than just products—we provide end-to-end value:
● Time-Saving: Rapid assembly/disassembly processes reduce downtime and accelerate project schedules.
● Cost-Effective: Extended service life with high reuse potential minimizes material waste and operational expenditures.
● Versatile: Modular design enables customizable configurations for diverse construction applications.
● High-Quality Results: Delivers uniformly smooth concrete surfaces, enhancing structural integrity and aesthetics.
Ready to streamline your construction with a formwork system that saves time, cuts costs, and delivers superior results? Click to explore detailed technical drawings, assembly guides, and customized quotes. Let Lianggong 65 Steel Frame Formwork power your next project—efficiently, safely, and sustainably.
