Liangong’s timber wall formwork stands out for quality and efficiency in varied construction. The timber wall formwork is mainly composed of timber beams, steel walings, and prop system.Compared with other formworks, timber wall formwork boasts advantages like lower costs, simpler assembly, and lighter weight，It can be applied to all types of walls and columns.
Composition

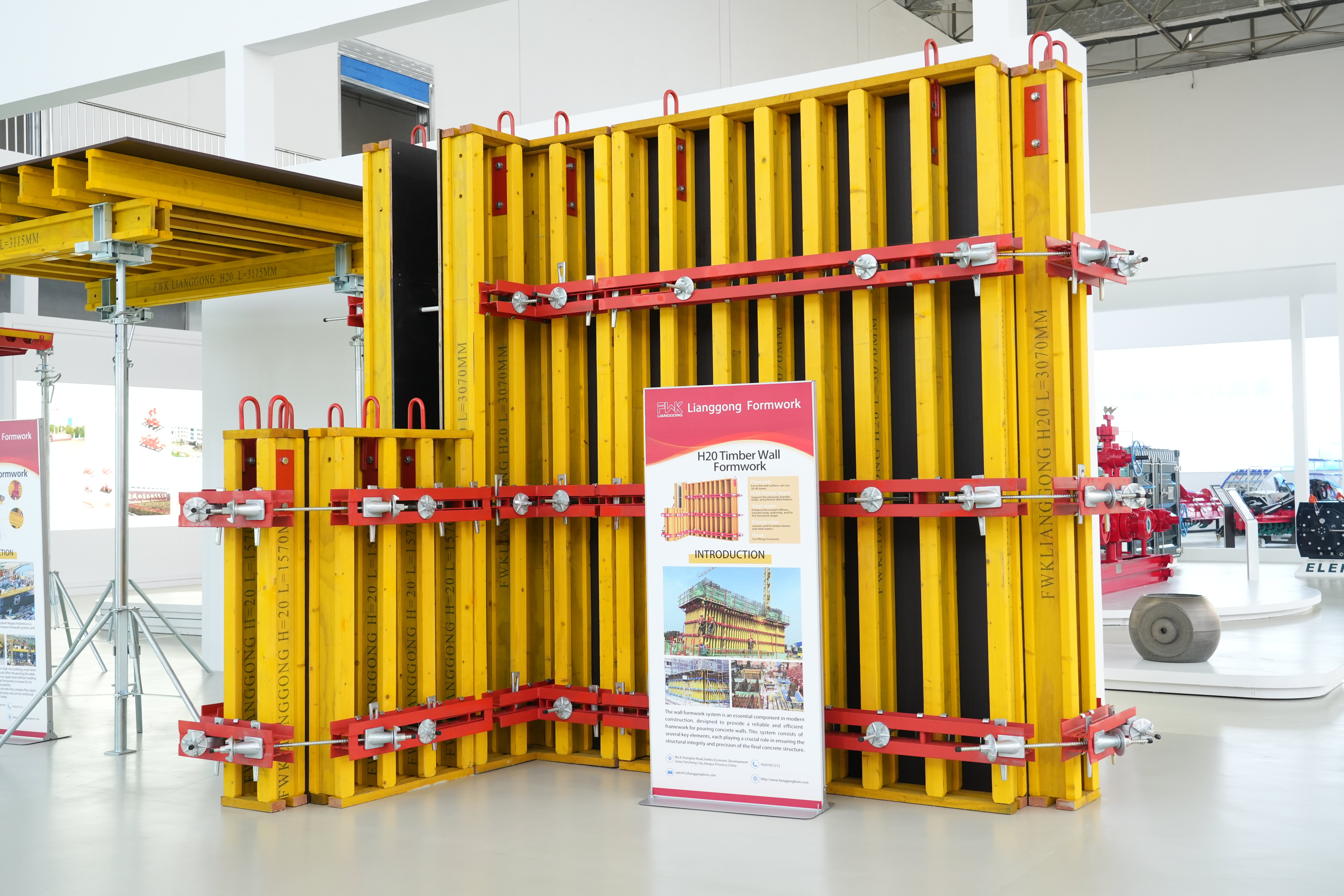

Liangong’s timber wall formwork is a type of concrete construction formwork used in architectural engineering. It consists of timber beams, steel walings, clamping jaws, lifting hooks, and plywood. The timber beams are made of spruce, with lifting hooks mounted on the side for easy hoisting. The timber beams are connected to the steel walings via clamping jaws. The plywood is generally 18mm thick and can be flexibly cut according to different requirements to meet personalized construction needs.
Product Parameters
|
No |
Item |
Data |
|
1 |
Material |
Timber beam, Hoist ring, Steel waler, Prop system |
|
2 |
Max Width x Height |
6m x 12m |
|
3 |
Film Faced Plywood |
Thickness: 18mm or 21mm Size: 2x6 meters (Customizable) |
|
4 |
Beam |
H20 timber beam Width: 80mm Length: 1-6m Permitted bending moment: 5KN/m Permitted shear force: 11kN |
|
5 |
Steel Waler |
Welded double U profile 100/120, Slot holes for universal use |
|
6 |
Components |
Waler connector, Beam clamp, Connecting pin, Panel strut, Spring cotter |
|
7 |
Application |
LNG tanks, Dam, High-rise building, Bridge tower, Nuclear project |
Features
Premium Material Makeup: Crafted from high-density timber beams, reinforced with precision-cut steel walers and a robust prop system, the formwork strikes a perfect chord between natural resilience and structural support. Each panel undergoes a specialized drying process to resist warping, even in humid job site conditions.
User-Centric Design: Lightweight yet durable, the panels are easy to maneuver by hand, reducing reliance on heavy machinery during setup. Pre-drilled holes and adjustable connectors make assembly a breeze, cutting down on installation time compared to bulkier systems.
Surface Excellence: The timber panels are sanded to a smooth finish, ensuring poured concrete walls emerge with clean edges and minimal imperfections—no need for excessive post-pour grinding.
Advantages
Cost Efficiency
Far more budget-friendly than steel formwork, it slashes material costs while reducing labor needs for handling and setup. Its reusability (up to 20+ cycles with proper care) adds long-term savings.
High Load-Bearing Capacity
Steel walings on the back of the formwork ensure uniform load transfer across the entire system, preventing deformation. It can effectively withstand the pressure generated during concrete pouring.
Flexibility on Site
Adapts seamlessly to curved walls, irregular angles, and custom dimensions, making it ideal for both standard projects and unique architectural designs.
Smooth Concrete Surface
The large panel size of the timber wall formwork enables more seamless concrete forming, reducing costs associated with subsequent grinding and repair work.
Applications
From residential high-rises to industrial warehouses, this system excels across scenarios:
Load-bearing walls in apartment complexes
Partition walls for commercial spaces like offices and malls
Structural columns in factories and logistics hubs
Retaining walls for landscaping and infrastructure projects
No matter the scale—whether a small renovation or a large-scale construction—timber wall formwork delivers consistency, efficiency, and value that’s hard to match.
