News Flash: Lianggong Technology & Business English Training Workshop

Lianggong holds the belief that customer comes first. So Lianggong offers technicians and overseas sales agents training sessions every Wednesday afternoon for the purpose of better serving our clients. Below is a picture of our training session. The man standing in the front of the meeting room is our chief engineer Zou.


Today we will be focusing on H20 Timber Beams, one of our main products. The training session’s layout is as follows:

Basic information of H20 Timber Beams

Characteristics of H20 Timber Beams

Specifications of H20 Timber Beams

Parameters of H20 Timber Beams

Applications of H20 Timber Beams

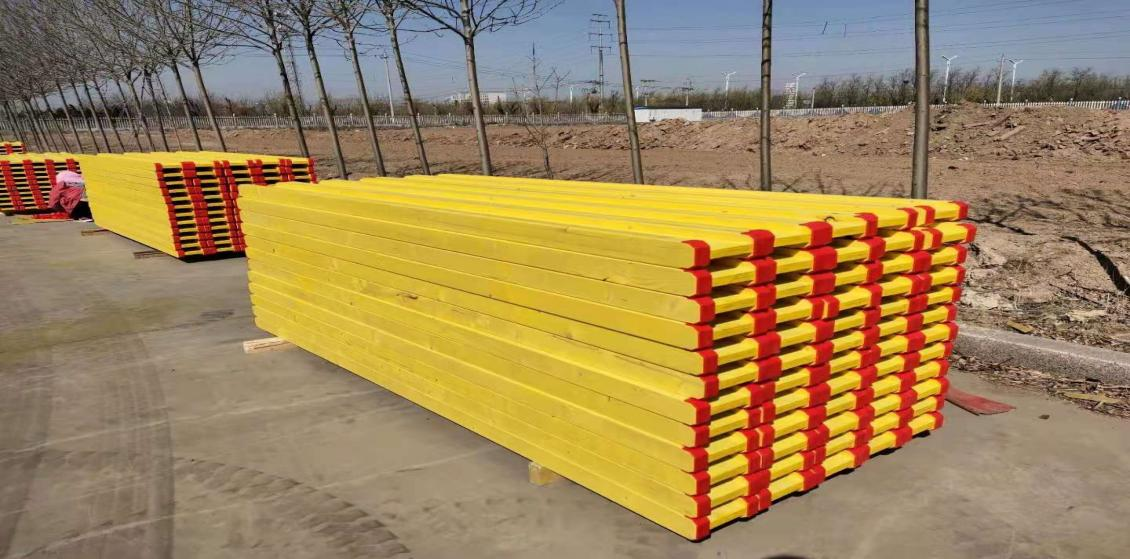

Basic Information of H20 Timber Beams:

H20 Timber Beam is a kind of light structural component, which is made of solid wood as flange and multilayer board or solid wood as web, bonded with weather-resistant adhesive and coated with anticorrosive and waterproof paint. H20 Timber Beam plays a vital role in international formwork systems for concrete construction. The standard length of wooden beam is usually within 1.2~5.9 meters. Lianggong has a large-scale timber beam workshop and a first-class production line with daily output of over 4000m. H20 Timber Beam can be applied with other formworks together, such as Table Formwork, Steel Formwork etc.



Characteristics of H20 Timber Beams:

High stiffness, light weight, strong load-bearing capacity.

It can greatly reduce the number of supports, expand spacing and construction space.

Easy to assemble and disassemble, flexible to use.

Cost-effective, high durability, can be reused.

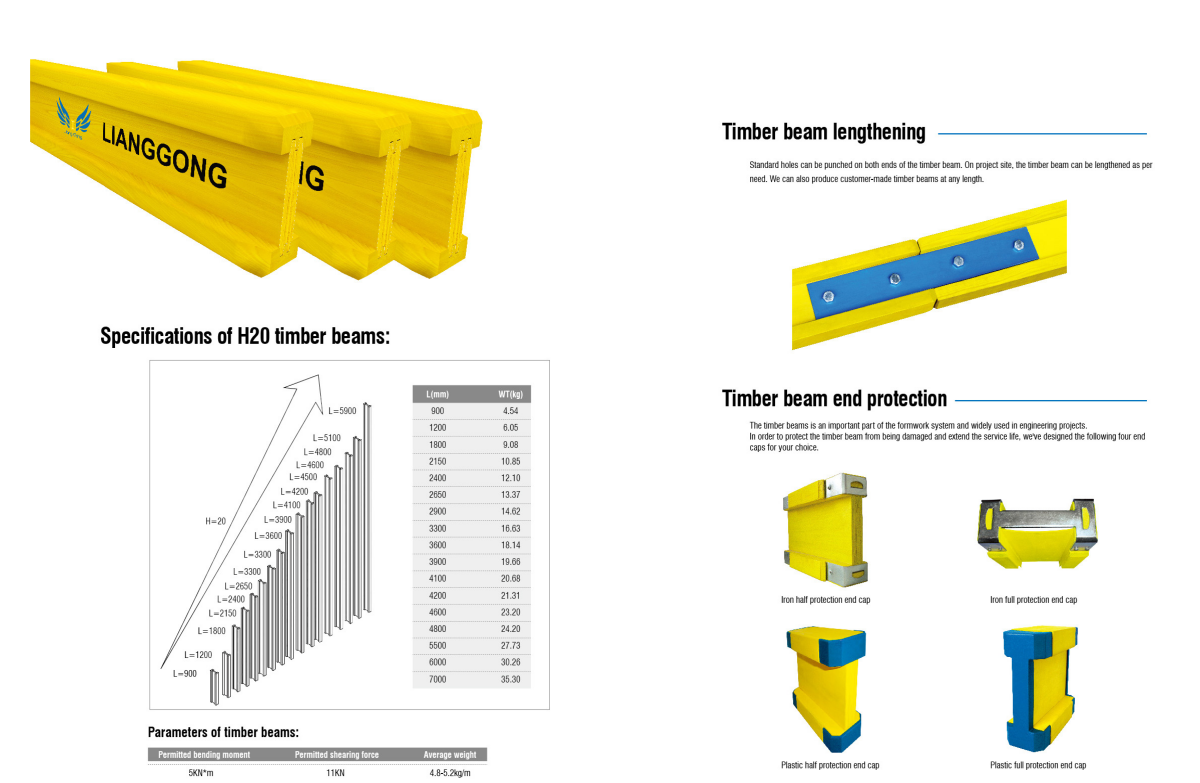

Specifications of H20 Timber Beams:

Parameters of H20 Timber Beams:

Permitted bending moment

Permitted shearing force

Average weight

5KN*m

11KN

4.8-5.2kg/m

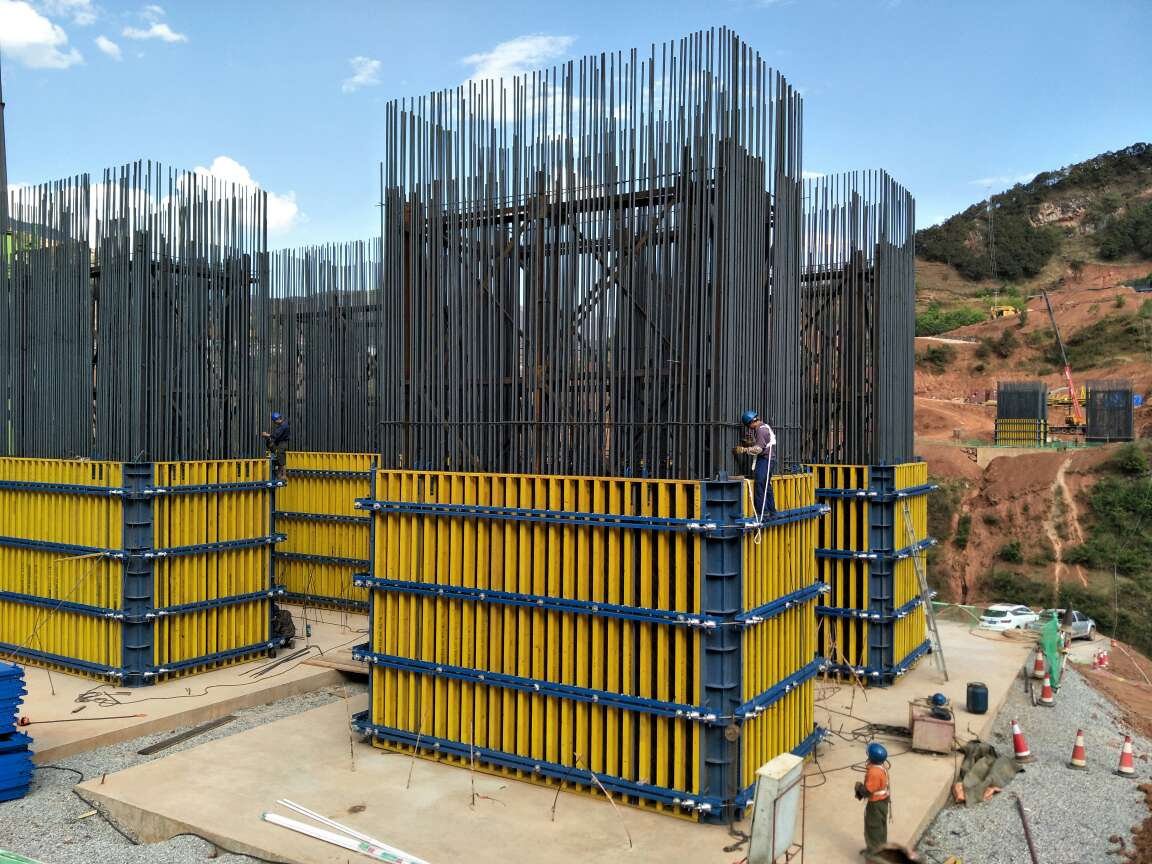

 Application of H20 Timber Beams:

So much for today’s sharing. Welcome to Lianggong to have a closer look at our timber beam workshop.










Post time: Dec-31-2021
