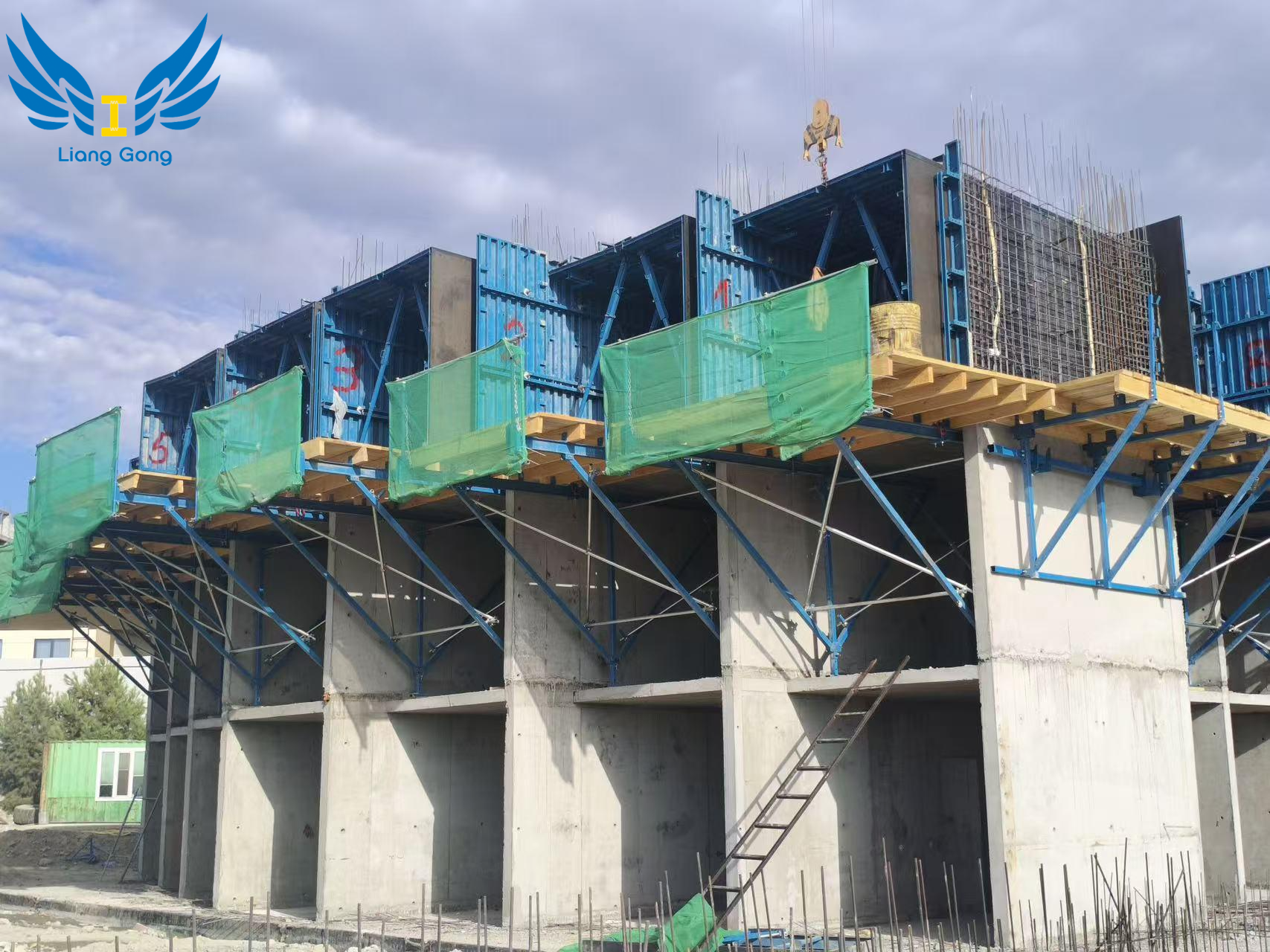

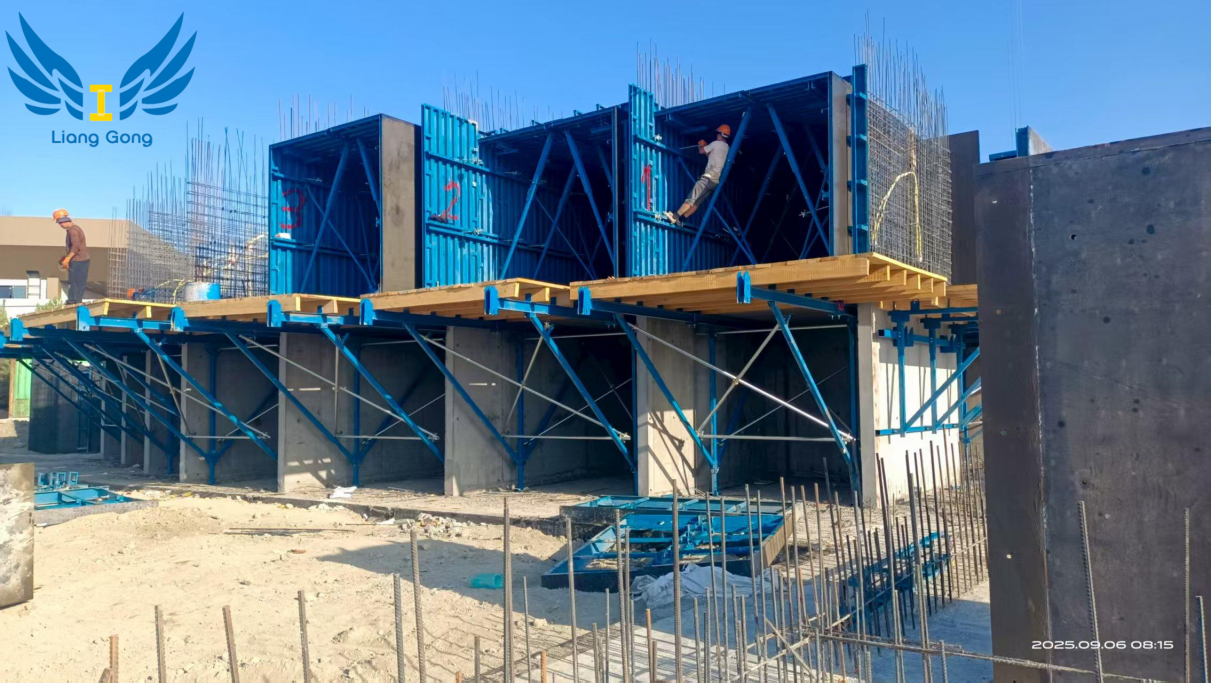

Lianggong Tunnel Formwork has set a new industry benchmark, enabling one-time simultaneous casting of walls and slabs to form seamless cellular reinforced concrete structures. Designed for repetitive standardized projects, this all-steel modular system redefines efficiency, delivering superior concrete finishes and accelerating construction timelines for contractors worldwide.
What Are Advantages of Tunnel Formwork?
● One-Piece Casting, Unmatched Efficiency: Eliminates the tedious “walls first, slabs later” cycle with simultaneous pouring of walls and slabs. Achieves a full floor cast in just 3 days (full configuration), slashing project duration by 40% vs. traditional formwork.
● All-Steel Durability & Reusability: Crafted from high-quality Q235 steel (3.5mm thick panels, robust frame structures), our tunnel formwork system withstands over 200 reuse cycles. Resistant to wear, impact and deformation, it delivers long-term cost savings by minimizing replacement needs.
● Modular Design for Easy Operation: Factory-preassembled components enable quick on-site assembly and disassembly. Equipped with movable casters, tunnel formwork construction reduces on-site handling frequency, boosting turnover efficiency.
● Enhanced Safety & Stability: Integral working platforms, edge protection and modular support systems distribute pouring pressure evenly, preventing tunnel formwork collapse or displacement. Minimal tool requirements reduce on-site accident risks.
● Flexible Adaptability: Customizable dimensions fit diverse layout requirements (space span: 2.4–2.6m, floor height ≤3m). Compatible with automated pouring equipment for standardized assembly-line operations, ideal for large-scale developments.
What Are Core Tunnel Formwork Components?

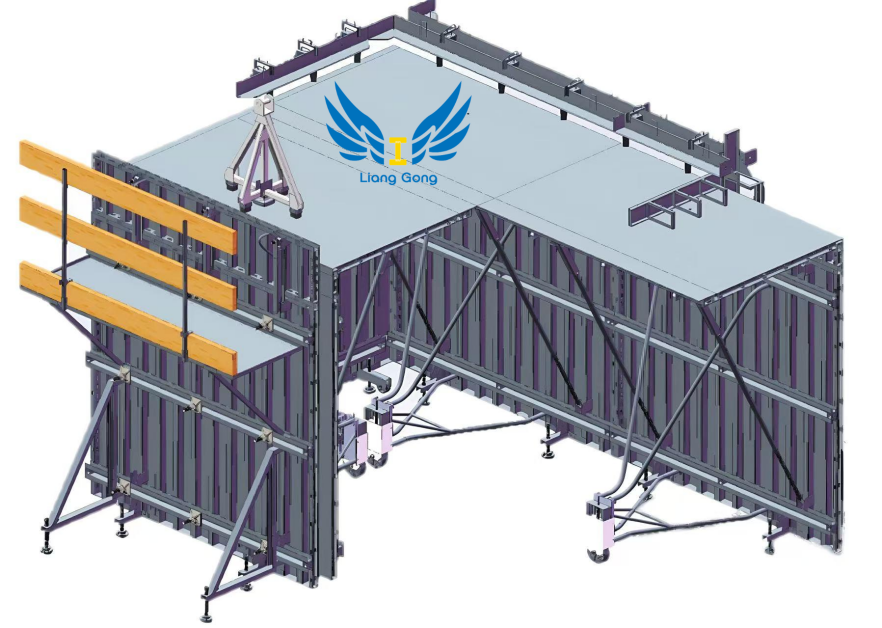

Every component is precision-designed to work seamlessly, ensuring reliability, safety and efficiency. Our tunnel formwork diagram is as follows:
1. Formwork System
The backbone of tunnel formwork system, responsible for shaping walls, slabs and ends with high precision.
● Main Components: Wall formwork, top formwork and end formwork.
● Material & Design: The pannel is 3.5mm thickness Q235 steel plate. The main beam is 6.3# double channel. The secondary beam is a 63×63 character beam and the frame is 63 channel steel for robust support.
● Key Features: Top formwork uses lifting beams instead of main beams for enhanced lifting stability. End formwork is customized for project-specific nodes.
● Connection: Bolt and C-type connectors ensure tight, aligned joints between panels.
2. Support System
Ensures structural rigidity during pouring and adjusts for levelness, adapting to on-site conditions.
● Main Components: Push-pull prop, caster support, single-side support and wall form support.
● Design Advantages: Caster support features a lightweight, modular design with good compatibility and adjustability—no project-specific redesign needed.
3. Guide Wall System
Guarantees accurate positioning of tunnel formwork, ensuring consistent wall/slab alignment across floors.
● Main Components: Single-side/double-side guide wall, straight formwork, angle formwork and clamps.
● Key Features: Supports both single-side and double-side casting. Clamps secure the guide wall to the foundation, preventing displacement during pouring.
4. Blocking System
Seals gaps and forms irregular sections for seamless concrete casting.
● Main Components: Wall blocking plates, floor blocking plates and fastening screws.
● Material & Design: 3.5mm thick Q235 steel panel with 8mm thick Q235 frame and 2.5# angle steel support frame. Φ10 hole on the frame enable direct screwing to the panel.
● Key Feature: When inverted, the blocking system is hoisted integrally with the template.
5. Lifting System
Facilitates efficient hoisting of tunnel formwork, both for single sets and multiple groups.
● Main Components: Lifting hook, hook, lifting beam.
● Design Details: High-capacity lifting hooks handle integral hoisting of multiple formwork groups during inversion. Low-capacity hooks turn single sets upright during assembly. Lifting beams press on the top formwork, strengthening it while bearing lifting loads.
● Safety: High load-bearing capacity ensures stable transportation, designed to avoid formwork deformation during lifting.
6. Work Platform
Provides a safe, convenient workspace for workers during assembly, pouring and disassembly.
● Main Components: Pedal, platform support, folding guardrail and connecting brackets.
● Design Advantages: Pedal is installed at caster connection seats. Platform support fasten to main beams for stability. Folding guardrail uses a double-pin design—upper pins act as limiters, allowing easy opening for formwork demolding.
What Are Applications of Lianggong Tunnel Formwork?
Lianggong Tunnel Formwork is tailored for projects requiring repetitive, standardized cellular structures:
● Residential buildings: Particularly suitable for high-rise apartments, affordable housing and other projects with repetitive unit layouts.
● Commercial buildings: Such as hotels and dormitories requiring fast construction of standardized spaces.
● Industrial buildings: Projects with strict timeline requirements.
Why Choose Lianggong As Your Tunnel Formwork Supplier?
As a leading formwork manufacturer, Lianggong delivers unmatched value:
● Quality Assurance: Complies with international quality management systems, offering OEM/ ODM customization for project-specific needs.
● One-Stop Service: From prefabrication and delivery to technical guidance and after-sales support, we handle every step.
● Cost-Effectiveness: High reuse cycles, reduced labor dependency and fast construction speed lower overall project costs.
● Global Trust: Praised by domestic and international clients for reliable performance in large-scale developments.
Ready to transform your construction project with a system that saves time, enhances safety and delivers superior results? Click to explore detailed technical drawings, assembly guides and customized quotes. Let Lianggong Tunnel Formwork power your next project—efficiently, durably and sustainably.
