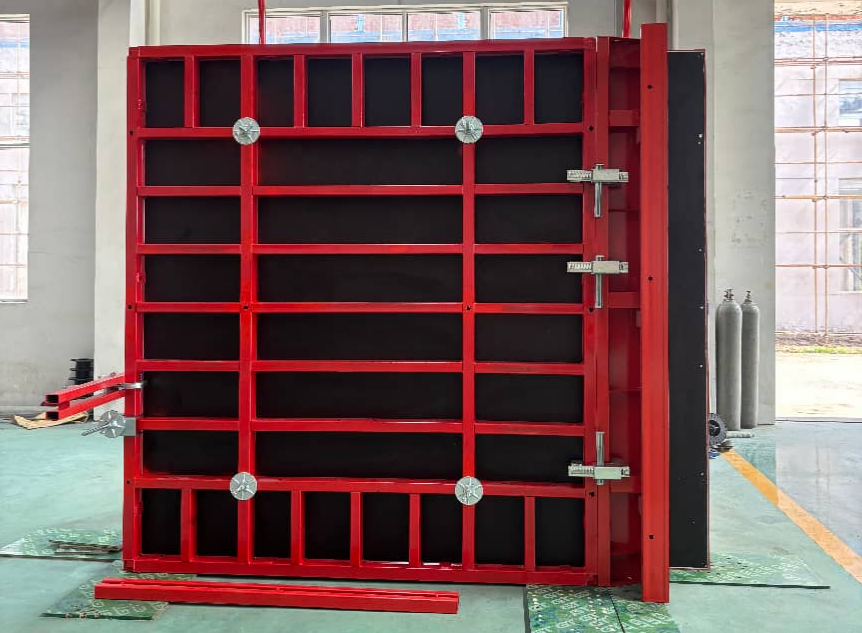

Lianggong 120 Steel Frame Formwork is a high-performance, modular steel-framed concrete forming system engineered for walls, columns, corners, and structural concrete applications in commercial, residential, and infrastructure construction. This system combines robust hollow steel frames, premium plywood panels, and standardized accessories to deliver exceptional strength, reusability, and smooth concrete finishes.
What Are Advantages of Lianggong 120 Steel Frame Formwork?
1. Heavy-Duty Structural Performance
● Frame material: High-strength Q355 steel for superior rigidity and durability.
● Wall formwork designed to withstand 80 kN/m² lateral concrete pressure.
2. Premium Formwork Panel
● 18 mm thick high-quality plywood facing for consistent, flat concrete surfaces.
● Reverse-side screwing connects frame and plywood, eliminating surface blemishes and ensuring flawless finished concrete.
● Moisture-resistant and wear-resistant for extended service life.
3. Modular & Flexible Assembly
● High standardization enables fast, flexible on-site assembly.
● Wood battens adaptable for non-standard dimensions to meet complex project layouts.
● Complete panel range in standard sizes: 3.3m, 2.7m and 1.35m heights, with widths from 0.3m to 1.35m.
● Full system compatibility for walls, columns, inside corners, and outside corners.
4. User-Friendly Design
● Adjustable steel clamps for fast, firm, and reliable connections.
● Sunken corner design for easy positioning and stripping.
● Compatible with dedicated console brackets, pull-push props, and articulated corners.
● Lightweight for easier handling, reduced labor, and improved efficiency.
What Are Core Components of Lianggong 120 Steel Frame Formwork?
1.Standard Vertical Formwork Panels
Available in multiple modular sizes with optimized weights for transport and installation:
● 3.3m height: widths 1.35m, 0.9m,0.6m, 0.45m, 0.3m
● 2.7m height: widths 1.35m, 0.9m,0.6m, 0.45m, 0.3m
● 1.35m height: widths 1.35m, 0.9m,0.6m, 0.45m, 0.3m
2.Articulated Corner Formwork
Two types for seamless right-angle and variable-angle construction, adjustable up to 180° for versatile layout adaptation:
● Articulated inside corner
● Articulated outside corner

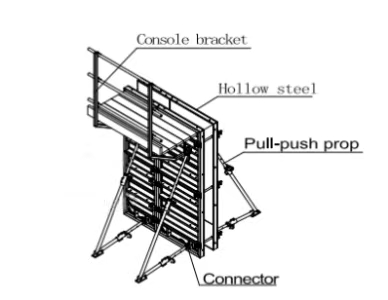

3.Supporting Accessories
● Console bracket: Custom-designed for stable 120 formwork bracing.
● Pull-push prop & connector: For accurate alignment, leveling, and reliable support.
● Steel clamps, F-type bolts, wing nuts, washer plates, and steel walings for stable, tight connections.
Why Choose Lianggong 120 Steel Frame Formwork?
● High strength & stability: Q355 steel frame withstands high concrete pressure safely.
● Perfect concrete finish: Reverse fixing and premium plywood minimize post-pour finishing.
● Flexible configuration: Full modularity adapts to standard and custom dimensions.
● Fast installation: Standardized parts and ergonomic design cut labor and time costs.
● Long service life: Durable components support hundreds of reuses, lowering total project cost.
Ready to streamline your construction with a formwork system that saves time, cuts costs, and delivers superior results? Click to explore detailed technical drawings, assembly guides, and customized quotes. Let Lianggong 120 Steel Frame Formwork power your next project— efficiently, safely, and sustainably.
