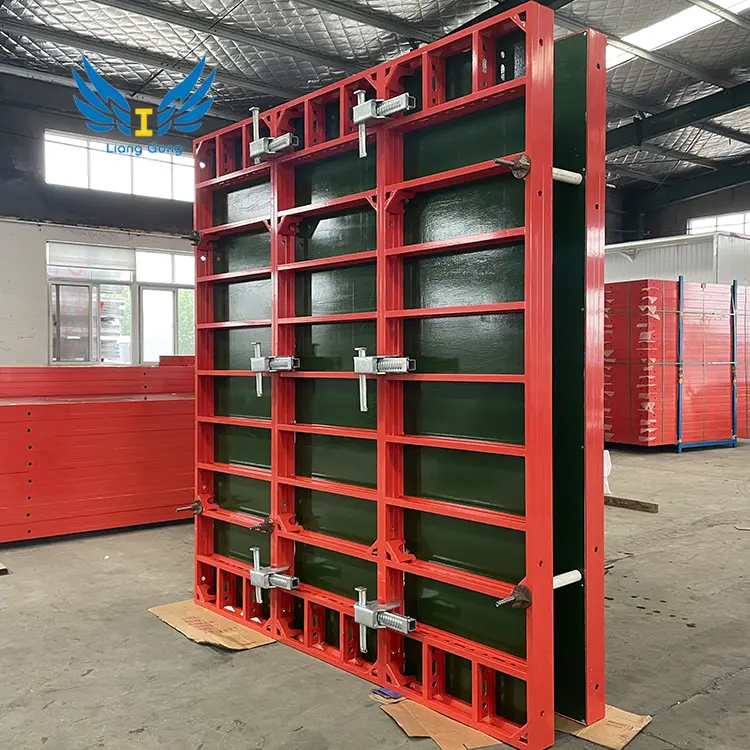

Lianggong 120 Aluminum Frame Formwork stands as a global choice—engineered with 6061-T6 aluminum alloy frames and 15mm thickness plywood, it delivers exceptional performance, rapid assembly and flawless concrete finishes. Our aluminum formwork system include aluminum wall formwork, aluminum column formwork and aluminum slab formwork. Ideal for shear walls, columns, elevator shafts and foundations, modular aluminum formwork redefines convenience and high efficiency for modern construction teams worldwide.
Why Our Aluminum Frame Formwork Outperforms Traditional Formwork?
● Lightweight & Hand-Held Design: No crane required—panels weigh 7.84kg to 70.9kg, easily carried by 1-2 workers. Even the largest 300×100cm panel (70.9kg) is maneuverable in confined spaces like basements or elevator shafts, boosting on-site safety and efficiency.
● High Load-Bearing Capacity: Withstands 60 kN/m2 concrete pressure, enabling fast pouring without deformation. The 6061-T6 aluminum frame (excellent corrosion resistance and toughness) ensures structural stability for repeated use.
● Rapid Assembly & Disassembly: Modular panels connect via alignment couplers (up to 12cm filler compensation) and wedge clamps—no complex tools needed. Unskilled labor can master installation quickly, cutting construction time by 30% vs. timber beam formwork /steel formwork.
● Superior Reusability & Durability: Powder-coated surfaces and high-quality materials support reuse cycles, minimizing waste and long-term costs. Aluminum’s natural corrosion resistance ensures longevity in humid or outdoor environments.
● Precision & Flawless Finishes: Panels and precise alignment couplers guarantee dimensional accuracy. The 15mm plywood surface produces smooth concrete walls, columns and slabs—no post-pouring refinishing required.
● Versatile Customization: Panels (heights: 75cm–300cm, widths: 25cm–100cm) adjust in 50mm increments for columns (150×150mm–550×550mm) and walls. Articulated corners (75°–120°) handle L-shapes, T-junctions and oblique angles seamlessly.
What Are Specifications of Our Aluminum Frame Formwork?
● Material: 6061-T6 aluminum alloy frame and 15mm thickness plywood.
● Surface Treatment: Powder-coated or galvanized for corrosion resistance.
● Permitted Concrete Pressure: 60 kN/m2.
● Maximum Single Pour Height: 3m for walls/columns.
What Are Panel Ranges of Lianggong 120 Aluminum Frame Formwork?
|
Panel Dimension (Height × Width, cm) |
Unit Weight (kg) |
|
300×100 |
70.90 |
|
300×75 |
56.72 |
|
300×50 |
42.54 |
|
300×25 |
28.36 |
|
250×100 |
59.50 |
|
250×75 |
47.60 |
|
250×50 |
35.70 |
|
250×25 |
23.80 |
|
150×100 |
36.70 |
|
150×75 |
29.36 |
|
150×50 |
22.02 |
|
150×25 |
14.68 |
|
125×100 |
36.70 |
|
125×75 |
24.80 |
|
125×50 |
18.60 |
|
125×25 |
12.40 |
|
75×100 |
36.70 |
|
75×75 |
15.68 |
|
75×50 |
11.76 |
|
75×25 |
7.84 |
What Are Main Components of Our Aluminum Frame Formwork?
● Connection Tools: Alignment couplers (up to 12cm compensation) and wedge clamps (low-load connections).
● Support System: Push-pull props (extension lengths: 1.30–6.50m) with base plate for alignment.
● Tie Rod System: D15mm stop-end ties, big plate nuts for secure formwork fixing.
● Safety & Auxiliaries: Platform brackets, guardrail posts, lifting hooks and foundation tie clamps.
What Are Ideal Applications of Lianggong 120 Aluminum Frame Formwork?
Our aluminum formwork (as known as aluminum concrete formwork) adapts to diverse construction scenarios:
● Shear Walls: Single pour up to 3m, handles lateral loads from wind/earthquakes—ideal for high-rises and seismic-prone areas.
● Columns & Piers: Adjustable 150×150mm–550×550mm sizes, single pour up to 3m—perfect for rectangular piers and building columns.
● Elevator Shafts & Stairwells: Lightweight panels fit confined spaces, precise dimensions speed up elevator installation.
● Foundations & Basements: Crane-free assembly for strip footings, pile caps and basements— safe and efficient in early construction phases.
● Residential/Commercial Buildings: Fast assembly for walls, slabs and partitions—saves time for housing developments and office complexes.
Why Choose Lianggong as Your Aluminum Formwork Supplier?
As one of the leading aluminum formwork manufacturers, Lianggong offers a wide range of aluminum formwork construction solutions to meet the demanding needs of modern construction projects. Our aluminum formwork for concrete is lightweight, durable and versatile – making them an ideal solution for applications where quick assembly and disassembly are priorities.
Compared to traditional timber formwork and steel formwork, Lianggong’s aluminum concrete formwork provide significant advantages in terms of ease of handling, repeated usage and total project costs. They can be efficiently assembled and disassembled multiple times without much effort. This translates to reduced construction schedules and optimized productivity. At Lianggong, we focus heavily on innovation to continuously enhance our aluminum formwork for construction.
Ready to streamline your construction with a lightweight, precise and durable aluminum formwork system? Click to explore detailed technical drawings, assembly guides and customized quotes. Let Lianggong 120 aluminum frame formwork power your next project—safely, efficiently and sustainably.
