Are you looking for a reliable, efficient, and versatile formwork solution for your construction projects? Look no further than our H20 Timber Beam Formwork System! Designed with precision and durability in mind, this system integrates high-performance components to meet diverse construction needs, including wall, arced, column, and slab formwork, we can help you discover the perfect formwork solution effortlessly.
Why Choose Our H20 Timber Beam Formwork System?
Our H20 Timber Beam Formwork System is engineered to deliver exceptional performance and value. The system boasts a lightweight design, making it easy to transport and install, while its modular structure allows for quick assembly and disassembly, significantly improving construction efficiency.
Key advantages include:
Superior Durability: Our H20 timber beam is crafted from high-quality imported spruce with mechanical finger-jointing and automated production lines, ensuring consistent quality and strength.
Excellent Concrete Finish: The plywood panel, available in film-faced or plastic-coated types, features a smooth surface with good water absorption and air permeability, ensuring a high-quality, blemish-free concrete surface.
Eco-Friendly & Sustainable: Made from renewable wood materials and recyclable components, the system aligns with green construction trends.
Core Product Modules
Our H20 Timber Beam Formwork System covers six key modules, each tailored to specific construction requirements. Below is a detailed comparison to help you choose the right solution:

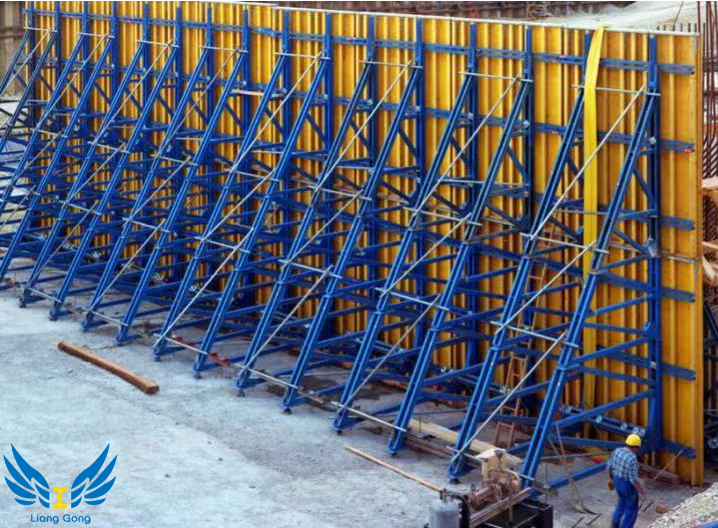

Our Wall Formwork (Flat Formwork) is a cornerstone of the H20 Timber Beam Formwork System. It features H20 timber beams as vertical ribs and steel walers as horizontal supports, connected by flange clamps for stability. The system is ideal for vertical shear walls, bridge piers, and basement side walls, supporting concrete pouring with high precision and no leakage.

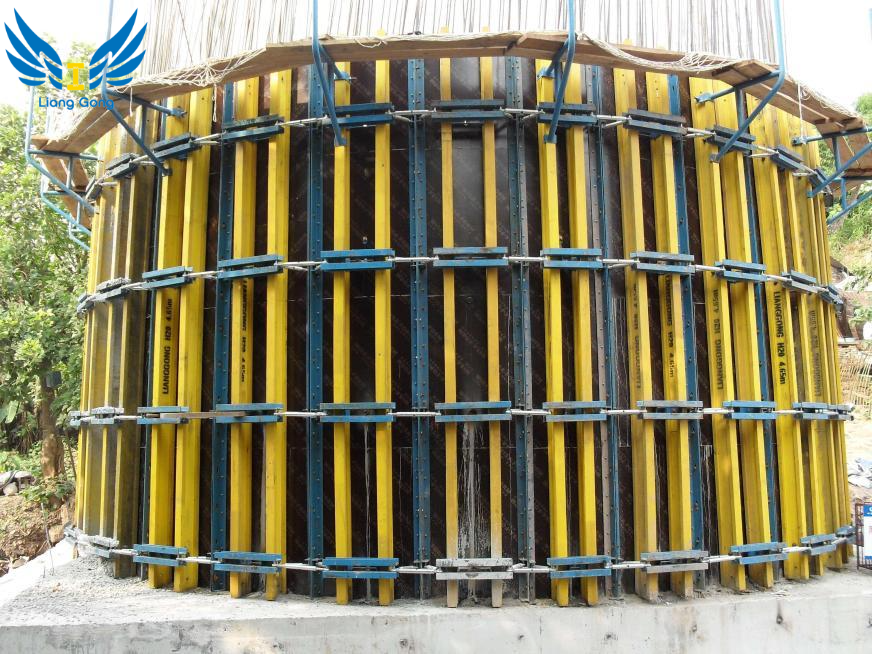

Adjustable Arced Formwork
Crafted for curved structures, our Adjustable Arced Formwork leverages the flexibility of plywood panels and the rigidity of H20 wood beams. By adjusting the frame clamps, the panel can be bent into the desired arc (radius ≥3m) without damage. It is widely used in curved walls, cylindrical structures, and ethylene tanks, ensuring a smooth and accurate curved concrete surface.

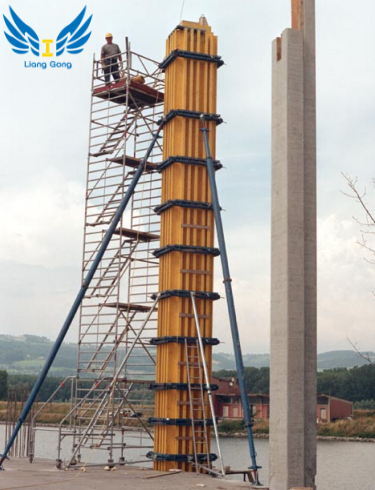

Column Formwork & Adjustable Column Formwork
Our Column Formwork is designed for standard square/rectangular columns, while the Adjustable Column Formwork offers flexibility for variable-size columns (0.2~1.4m side length). Both use H20 timber beams as the main support structure, ensuring stable load-bearing and precise column dimensions. The adjustable version eliminates the need for custom formwork, saving time and costs for projects with irregular column sizes.

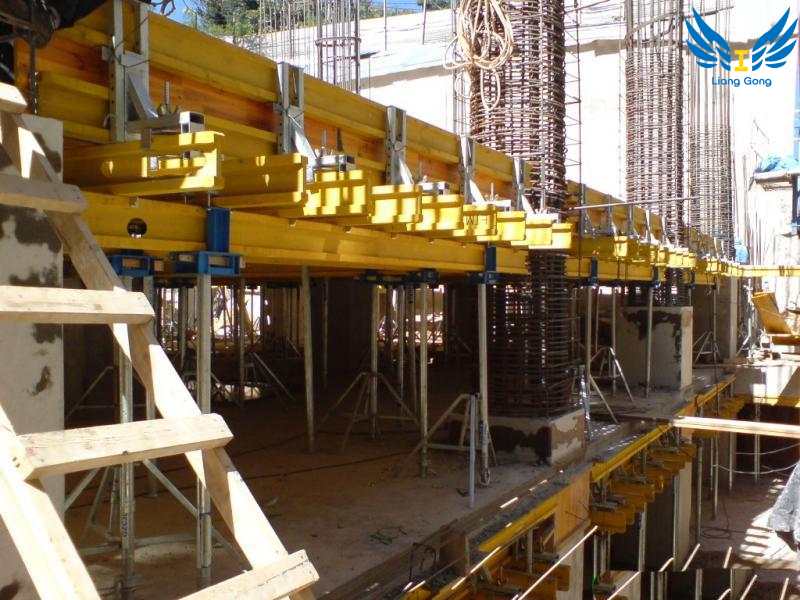

Slab Formwork & Flex-Slab Formwork
The Slab Formwork includes table form and scattered form options. The table form is a one-piece solution for fast floor slab construction, allowing overall lifting to the next floor after pouring. The scattered form offers flexibility for small or irregular areas. Our Flex-Slab Formwork takes it further, adapting to complex slab shapes with modular components, improving construction efficiency.
Product Specifications & Quality Assurance

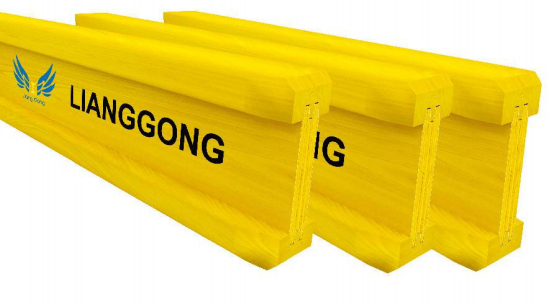

H20 Timber Beam: Permitted bending moment 5KN.M, permitted shearing force 11KN, weight 4.8~5.2Kg/m, length customizable.
Plywood Panels: Thickness 9mm~21mm, sizes 1220×2440mm, 1250×2500mm, etc., film-faced or plastic-coated options.
Steel Components: Steel walers (12#/14# channel steel), tie rods (D15/D20), steel props (load-bearing 20KN/30KN).
Quality Certification: Complies with EN 314-2/CLASS 3, GB50666-2011 standards, ensuring reliable performance in global projects.
Why Partner With Us?
Professional Manufacturing: Yancheng Lianggong Formwork Co., Ltd. is a leading manufacturer with advanced production lines and over 10 years of experience in formwork systems.
Custom Solutions: We offer tailored formwork designs based on your project drawings and requirements.
Global Service: Fast delivery, technical support, and after-sales service cover over 50 countries worldwide.
Ready to enhance your construction efficiency with our Timber Beam Formwork System? Contact us today for a free quote and detailed technical documentation!
