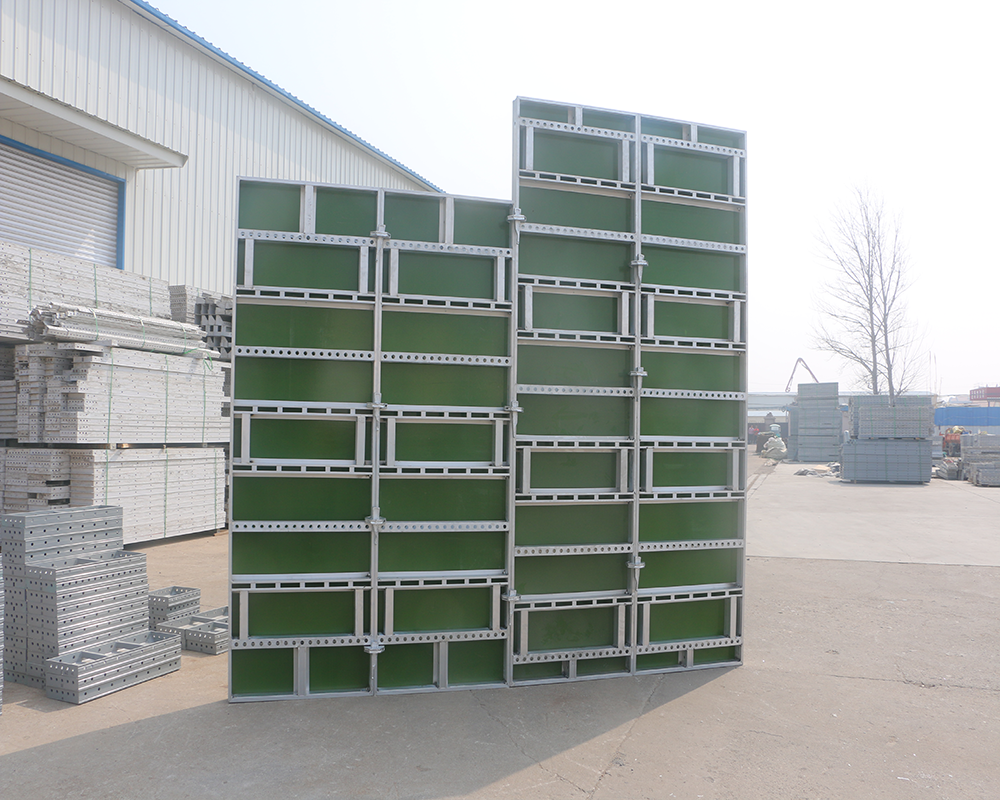

Aluminium Frame Panel Formwork

The aluminum frame panel formwork is a modular and stereotyped formwork. It has the characteristics of light weight, strong versatility, good formwork rigidity, flat surface, technical support and complete accessories. The turnover of the formwork panel is 30 to 40 times. The turnover of the aluminum frame is 100 to 150 times, and the amortization cost is low each time, and the economic and technical effect is remarkable.It is ideal for vertical construction, small, medium to large jobs.

14

Application advantages of aluminum frame panel formwork

1. Overall pouring

Compared with new formwork systems such as large steel formwork and steel-framed formwork, aluminum-framed formwork panels can be poured at one time.

2. Guaranteed quality

It is less affected by the technical level of the workers, the construction effect is good, the geometric size is accurate, the level is smooth, and the effect of pouring can reach the effect of fair-faced concrete.

3. Simple construction

The construction does not depend on skilled workers, and the operation is quick, which effectively solves the current shortage of skilled workers.

4. Less material input

Using early demolition technology, the entire building construction is completed with one set of formwork and three sets of supports. Save a lot of formwork investment.

5. High construction efficiency

The daily assembly quantity of the traditional bamboo and wood system formwork skilled workers is about 15m2/person/day. Using the aluminum frame panel formwork, the daily assembly capacity of the workers can reach 35m2 person/day, which can greatly reduce the labor usage.

6. High turnover

The aluminum frame can be used 150 times, and the panel can be used 30-40 times. Compared with the traditional formwork, the utilization rate of residual value is higher.

7. Light weight and high strength

The weight of the aluminum frame plywood formwork is 25Kg/m2, and the bearing capacity can reach 60KN/m2

8. Green construction

The mold expansion and slurry leakage are greatly reduced, which effectively reduces the waste of materials and reduces the cost of garbage cleaning.
