3-Layer Yellow Formwork Board

product parameters this board consists of three layers of wood, the wood comes from three kinds of trees growth in sustainable forest fir, spruce, pine tree. The two outer plates are glued longitudinally and the inner plate is glued transversely. Melamine-urea formaldehyde (MUF) controlled temperature pressing bonding. This 3-layer structure ensures dimensional stability and almost impossible expansion or contraction. The surface of the melamine-coated panel is resistant and uniform, so it is suitable for any structural site due to superior quality and durability.

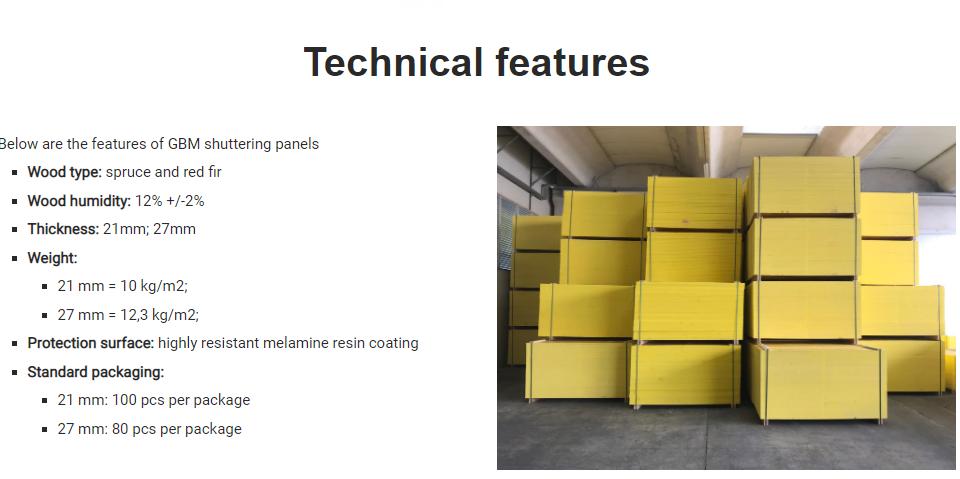

Board2

3-Layer yellow ply shuttering panel for construction

General Information:

Normal size:

Length:3000mm,2500mm,2000mm,1970mm,1500mm,1000mm,970mm

Width:500mm(optional-200mm,250mm,300mm,350mm,400mm,450mm)

Thickness:21mm(7+7+7) and 27mm(9+9+9 or 6+15+6)

Gluing:MUF or Phenolic glue(E1 or E0 grade)

Surface protection:Water-resistant melamine resin coated by hot-pressed.

Edges:Sealed by water-proof yellow or blue paint.

Surface color:Yellow

Moisture content: 10%-12%

Wood type:Spruce(Europe),Chinese fir,Pinus sylvestris(Russia) or other species.

All boards marked to guarantee traceability.

Application: Concrete form,formwork panels,platform or other uses.

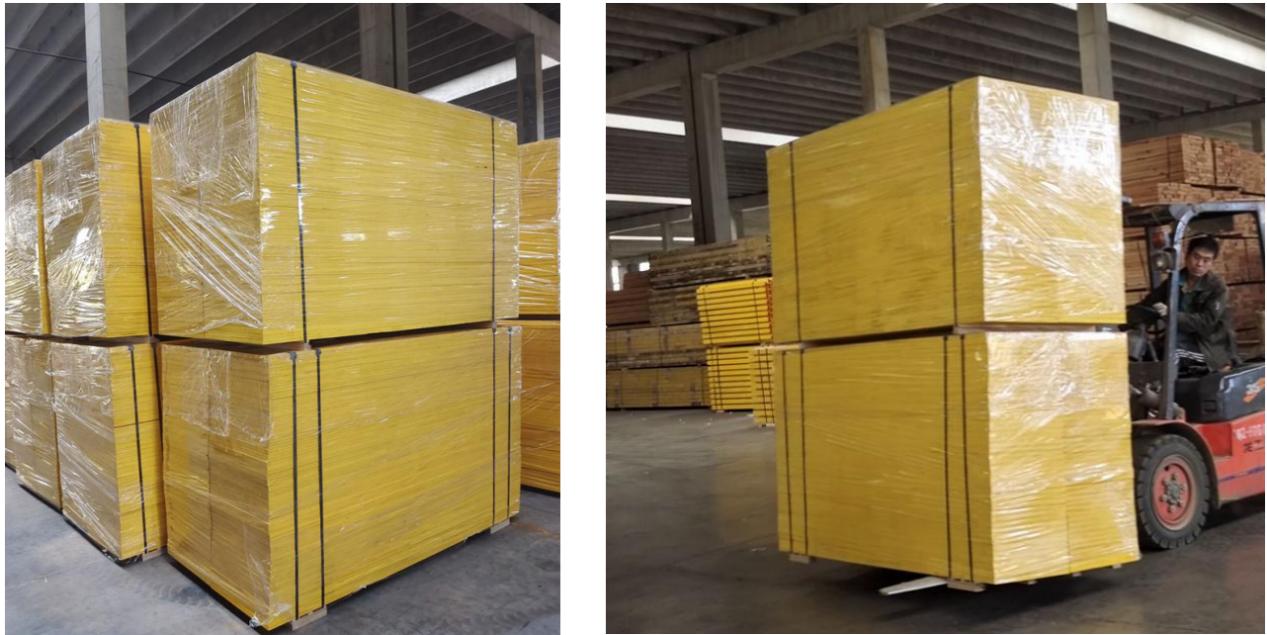

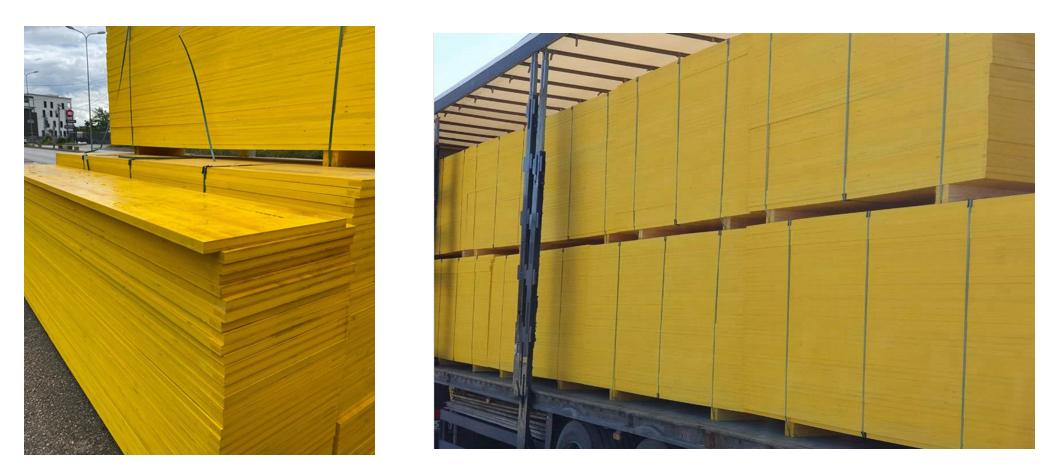

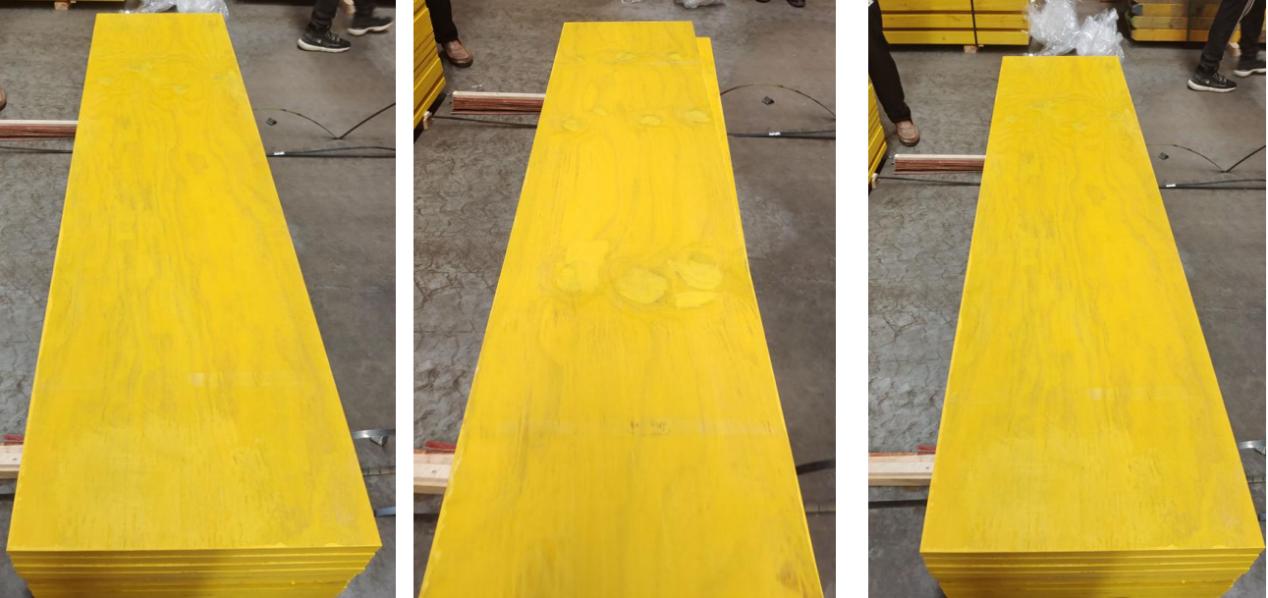

Product Photos

Board3

 Board4 Board5

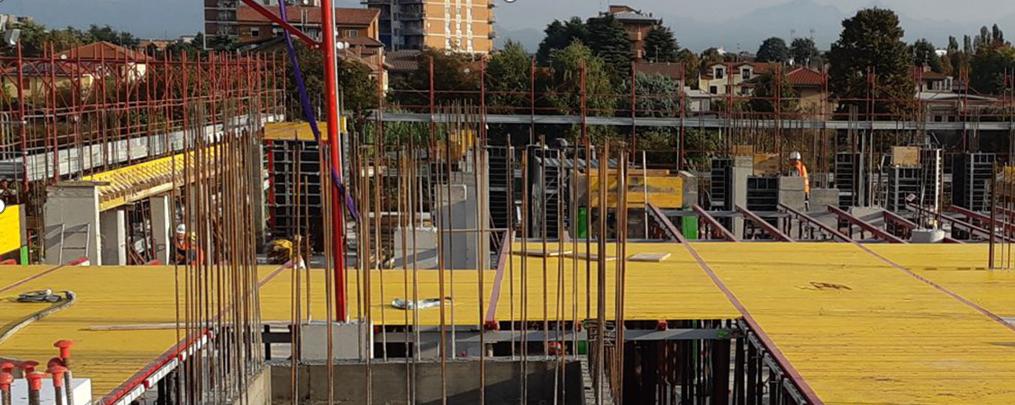

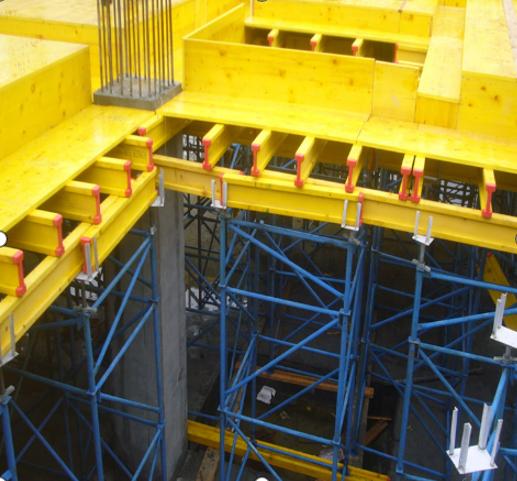

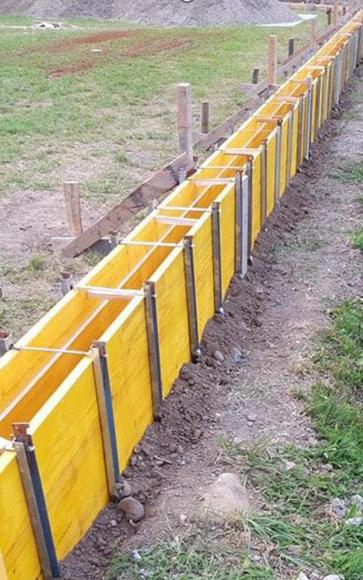

3-Layer Board Application

 Board6 Board7 Board8

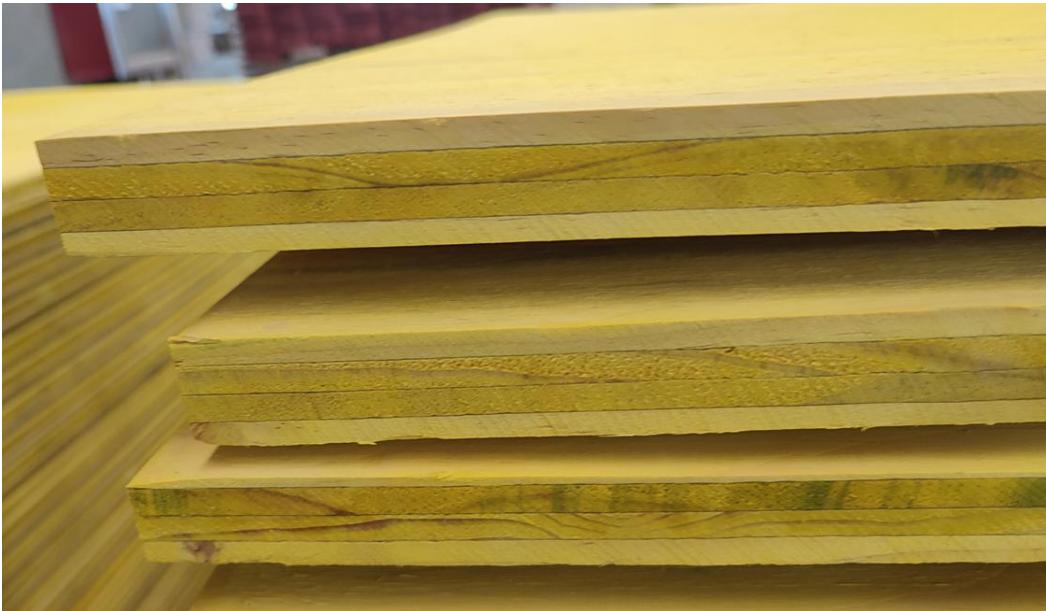

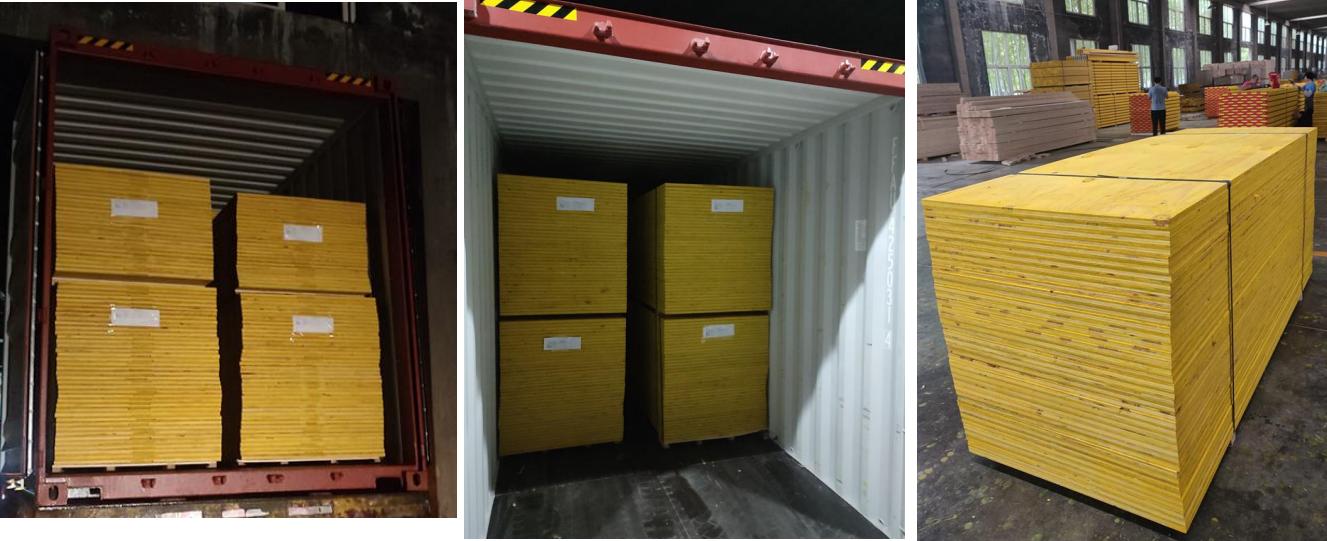

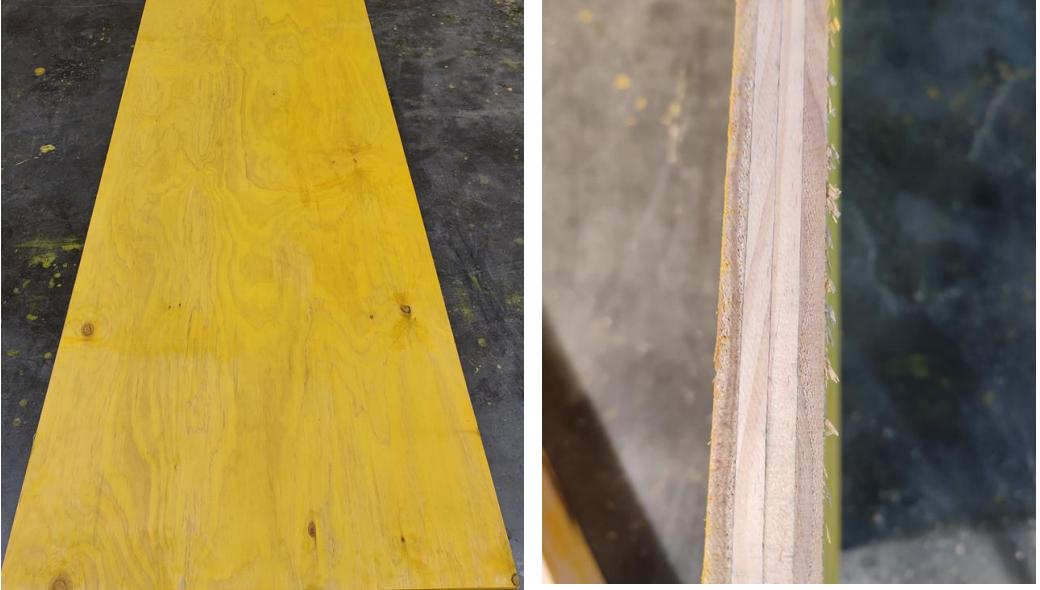

4-Layer yellow ply shuttering panel for construction

 Board9 Board10 Board11


Post time: Aug-31-2022
